PANDA SHELVING SYSTEMS

ROLL POSTS:

Panda Shelving Systems have one-piece solid uprights with a rolled front edge for additional strength, safety and asthetic appeal. Roll posts are available suitable for 300mm, 400mm, and 600mm deep shelves.

BACK PANEL

Solid back panels provide additional stability and prevents dust. As per the new design the back panel is a set of 2 pcs.

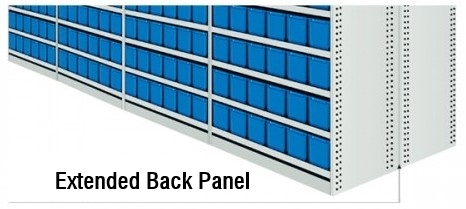

EXTENDED BACK PANEL :

Extended back panels can be added along with additional roll posts to expand the existing units, side by side or back to back.
As per the design the extended back panel is a set consisting of two pcs. i.e. 482mm wide and 457mm wide in four standard heights 1275mm, 1875mm, 2175mm and 2375mm.

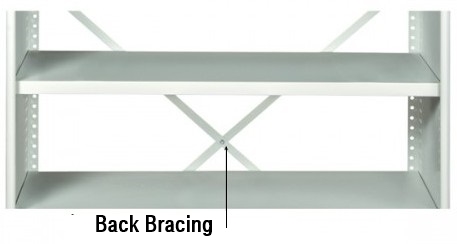

BACK BRACING : Art No.: ASUBB

Back bracing can be used instead of solid back panels as an economical solution. Back Bracing is made from CRCA Steel 2mm thickness and duly powder coated in Light Grey RAL 7035 colour. In 1275mm Height shelving systems single set of back bracing to be used. In 1875mm, 2175mm & 2375mm shelving systems two sets of back bracing are to be used.

SHELVES

Shelf levels are easily adjusted in 25mm increments and are held into position with the use of nuts & bolts and easy clips

Shelves are available in 300mm, 400mm, 450mm, 500mm and 600 mm depth having 900 mm width as standard.

KICK PLATES :

All shelving bays are fitted with solid kick plates, which prevent unwanted material to enter in the base of the shelving unit and it looks aesthetically good.

FLEXIBILITY

Panda shelving systems are fully enclosed and are designed to suit every changing needs. The flexibility of the product accommodates additions or alterations at any stage, with a minimum of fuss or disruption to your day to day operations.

FINISH

All Panda Shelving components are manufactured in 0.8mm CRCA steel and are duly powder coated in light grey colour.

BAY LOAD CAPACITY

Maximum bay load capacity i.e. UDL of an individual bay fitted with shelves using easy clips and bolted shelves are shown below :

Shelving Bay Height	No. Of Shelves to be bolted.	Max. Bay Load Capacity
1275 mm	4 Nos	1000 Kg
1875 mm	6 Nos	1000 Kg
2175 mm	7 Nos	1000 Kg
2375 mm	8 Nos	1000 Kg

SHELF LOAD CAPACITY

A Range of Shelf Load capacities are available as listed for different sizes as per UDL (UNIFORMELY DISTRIBUTED LOAD). Considering L / 180 deflection ie. 5mm

SHELF	SIZE	UDL
ASUS 300	300mm x 900mm x 33mm	90 Kg
ASUS 400	400mm x 900mm x 33mm	80 Kg
ASUS 450	450mm x 900mm x 33mm	80 Kg
ASUS 500	500mm x 900mm x 33mm	75 Kg
ASUS 600	600mm x 900mm x 33mm	75 Kg

Top

FEATURES


20mm dia. rolled edge. Alkon Logo embossed on all shelves		Easy clips to faciliate quick assembly


Rollpost caps fitted on the top edge of the rollpost		Shelf fitted with easy clip


Shelf fitted with bolt size M6 x 12. View from outside		Shelf fitted with bolt size M6 x 12. View from inside

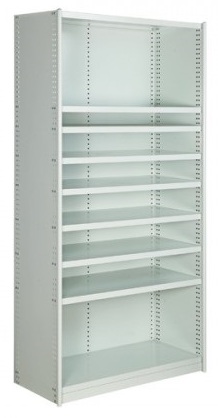

Shelving System with shelves & back panels

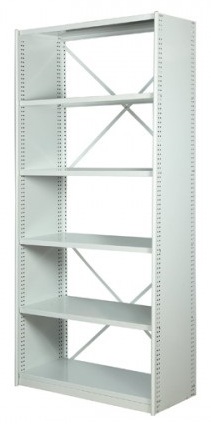

Shelving System with shelves & cross bracings

PANDA Shelving systems are designed and built to solve any storage problems safely, quickly and economically.

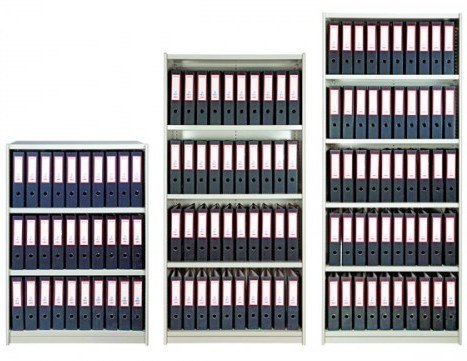

There is a wide range of Shelving Systems available to meet all your storage needs from small components to large parts. All systems are ruggedly constructed from high quality steel and powder coated in RAL 7035 light grey colour.

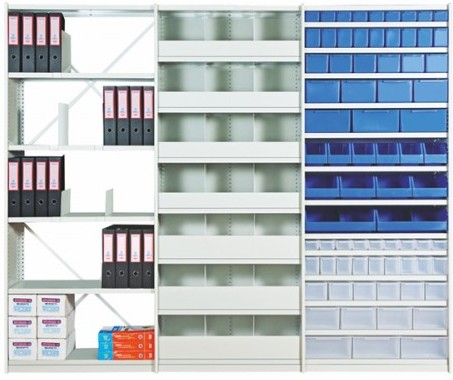

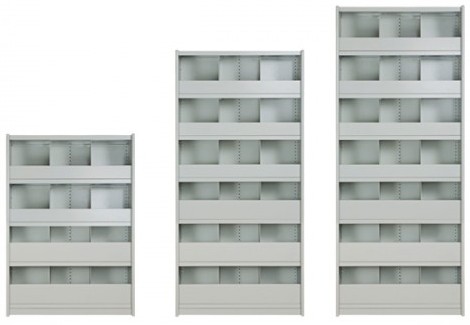

Open Shelving	Piegon Hole	Shelving System
System	Shelving System	with Bins

STANDARD SIZE

System Heights (mm) 1275, 1875, 2175, 2375

System Width (mm) 900

System Depths (mm) 300, 400, 450, 500 and 600

100 Different Standard Combinations available for Panda Bins

Panda Shelving System

300 mm Deep

400 mm Deep

450 mm Deep

500 mm Deep

600 mm Deep

1275 H x 900 W x 300 D

1875 H x 900 W x 300 D

2175 H x 900 W x 300 D

2375 H x 900 W x 300 D

1275 H x 900 W x 400 D

1875 H x 900 W x 400 D

2175 H x 900 W x 400 D

2375 H x 900 W x 400 D

1275 H x 900 W x 450 D

1875 H x 900 W x 450 D

2175 H x 900 W x 450 D

2375 H x 900 W x 450 D

1275 H x 900 W x 500 D

1875 H x 900 W x 500 D

2175 H x 900 W x 500 D

2375 H x 900 W x 500 D

1275 H x 900 W x 600 D

1875 H x 900 W x 600 D

2175 H x 900 W x 600 D

2375 H x 900 W x 600 D
