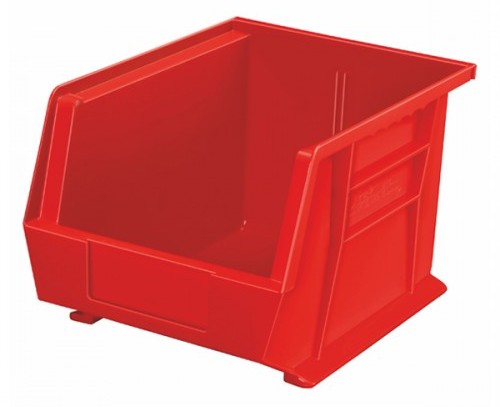

ALKON RHINO BINS

COLOURS AVAILABLE

for ARTB-05 to ARTB-40

RED BLUE GREY GREEN YELLOW

FOR ARTB-50 and ARTB-60 BIN

RED BLUE

1. STRONG RIBS PROVIDED FOR

OPTIONAL DIVIDERS TO

INCREASE STORAGE OPTIONS

2. FULL LENGTH REAR LIP SUPPORTS

PROVIDED FOR HANGING BINS ON
LOUVERED PANELS OR RAILS.

3. REINFORCED RIBS ADDS

STRENGTH AND AVOIDS

SPREADING.

4. EXTRA WIDE STACKING BASE FOR

SECURE STACKING.

5. EXTRA WIDE LABEL SLOT FOR

EASY CONTENT IDENTIFICATION.

6. STOPPER PREVENTS STACKED

BINS FROM SHIFTING FORWARD.

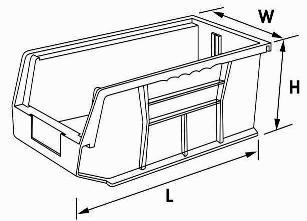

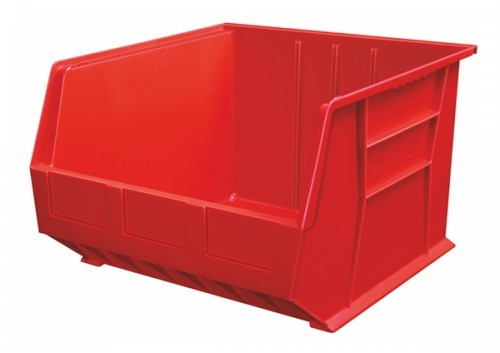

MODEL NO.	OUTSIDE DIMENSIONS IN MM			INSIDE DIMENSIONS IN MM			BIN LOAD CAPACITY
	Length	Width	Height	Length	Width	Height

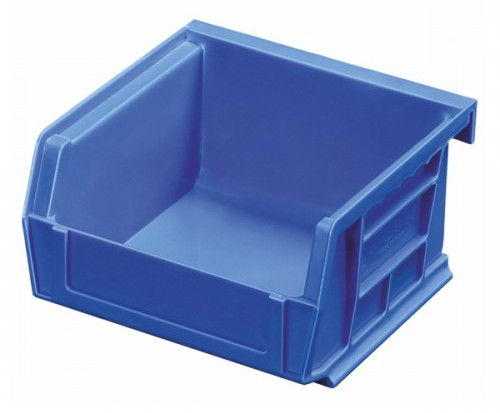

NEW ARTB-5	109	104	49	95	89	43

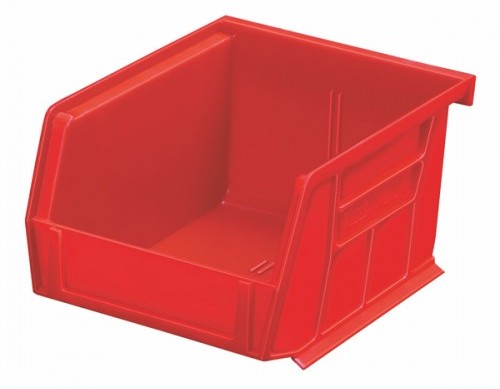

ARTB-10	136	106	76	125	90	65	5 KG

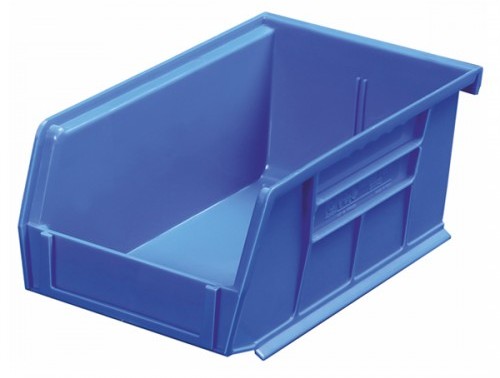

ARTB-20	187	106	76	171	90	65	7 KG

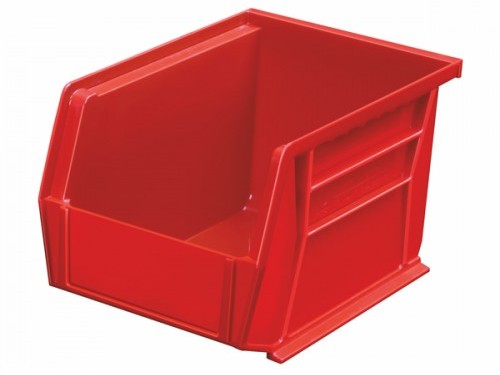

NEW ARTB-25	205	139	126	190	115	121

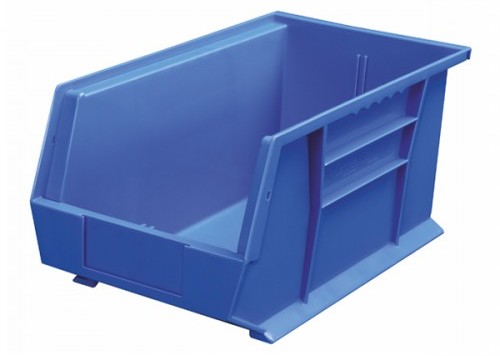

ARTB-30	274	140	127	256	115	115	15 KG

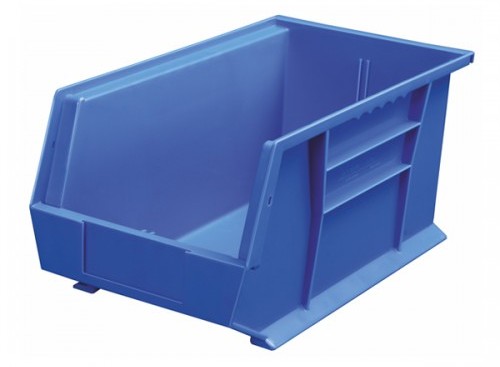

ARTB-40	375	210	179	355	170	160	20 KG

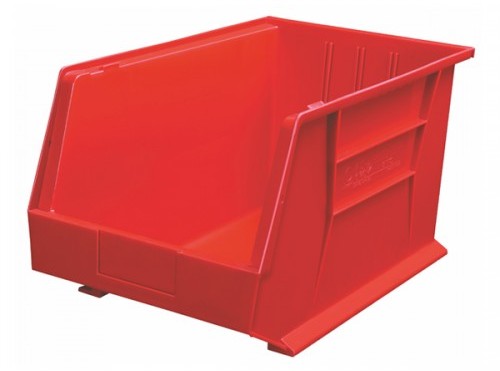

ARTB-50	457	280	255	432	241	240	25 KG

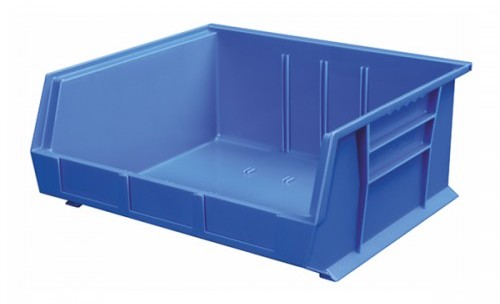

NEW ARTB-60	375	415	179	355	375	160

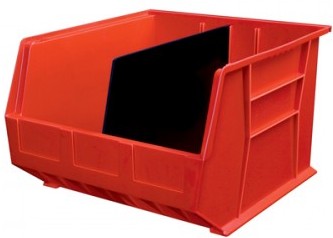

VERTICAL PARTITION FOR RHINO BINS ARE AVAILABLE AS AN ACCESSORY TO INCREASE STORAGE OPTIONS

RHINO 30 VERTICAL PARTITION
ART NO. :- VP-ARTB 30

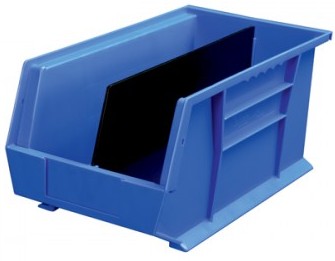

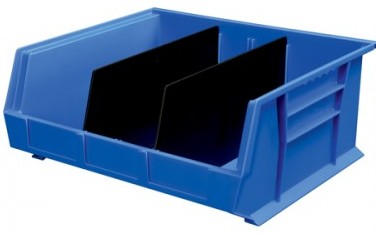

RHINO 40 / RHINO 60 VERTICAL PARTITION
ART NO. :- VP-ARTB 40 / 60

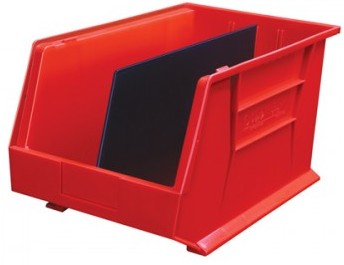

RHINO 50 VERTICAL PARTITION
ART NO. :- VP-ARTB 50

UNIVERSAL RAIL ( SIZE 910 mm L x 75 mm H ) MADE FROM STEEL AND POWDER COATED IN GREY COLOR CAN BE MOUNTED ON ANY SURFACE LIKE WALLS, BENCHES, SLOTTED ANGLE SYSTEMS, STANDS AND TROLLEYS. THESE RAILS INCREASE THE FLEXIBILITY OF USING DIFFERENT SIZES OF BINS WITH EASE AND HELP IN OPTIMIZING STORAGE SPACE.

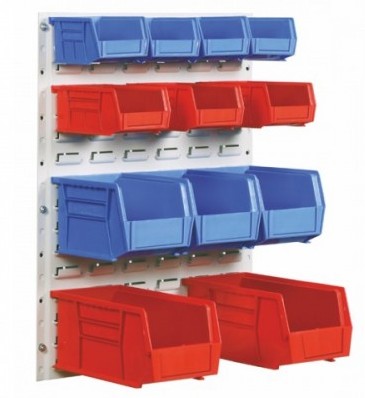

LOUVER PANELS ARE MANUFACTURED FROM 1.5 mm CRCA STEEL AND POWDER COATED IN GREY COLOR. RHINO BINS CAN BE MOUNTED WITH EASE IN VARIABLE COMBINATIONS AS LISTED BELOW

ART NO	LOUVRE PANEL
ART NO	LP 1	LP 2	LP 3	LP 6
SIZE	457 x 457	457 x 610	457 x 915	457 x 1830
ARTB-05	24	32	48	96
ARTB-10	24	32	48	96
ARTB-20	24	32	48	96
ARTB-25	9	12	18	36
ARTB-30	9	12	18	36
ARTB-40	4	6	8	18
ARTB-60	2	3	4	9
All Dimensions in mm approx.

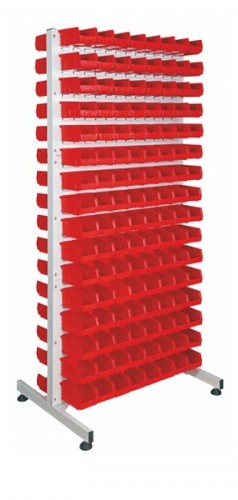

DOUBLE SIDED STAND

SINGLE SIDED STAND

HEAVY DUTY DOUBLE SIDED STAND IDEAL FOR USE WITH RHINO BINS IN DIFFERENT COMBINATIONS AS DETAILED BELOW. PLEASE ORDER RHINO BINS, RAILS (AUR-1), STANDS (ARSS-2) SEPARATELY AS PER YOUR REQUIREMENTS.

STAND CAN BE ALSO BE USED ON SINGLE SIDE AS PER REQUIREMENT.

ART NO	BINS PER RAIL	RAILS PER ARSS		Total No. Of Bins
ART NO	BINS PER RAIL	Single Side	Double Side	Total No. Of Bins
ARTB-05	8	15	-	120
ARTB-10	8	12	-	96
ARTB-20	8	12	-	96
ARTB-25	6	8	-	48
ARTB-30	6	8	-	48
ARTB-40	4	12	-	24
ARTB-60	2	12	-	12

ARTB-05	8	-	30	240
ARTB-10	8	-	24	192
ARTB-20	8	-	24	192
ARTB-25	6	-	16	96
ARTB-30	6	-	16	96
ARTB-40	4	-	24	48
ARTB-60	2	-	24	24

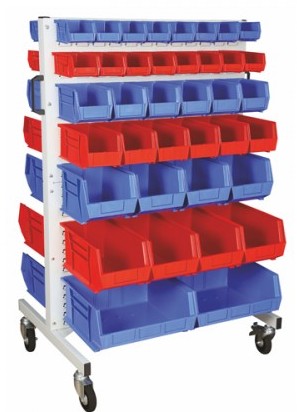

HEAVY DUTY DOUBLE SIDED STAND FITTED ON HEAVY DUTY TROLLEY IDEAL FOR USE WITH RHINO BINS IN DIFFERENT COMBINATIONS AS DETAILED BELOW. PLEASE ORDER RHINO BINS, RAILS (AUR-1), STAND [(ARSS-3) CONSISTING HEAVY DUTY TROLLEY BASE ARSTM AND PIPE SET ARSP], SEPARATELY.

REFER BINS CHART AS PER DOUBLE SIDED/SINGLE SIDED STAND AS ABOVE

DIMENSIONS: 1030 MM (W) X 640 MM (D) X 1620 MM (H)
