PANDA SHELVING SYSTEMS




ALKON

 PANDA SHELVING SYSTEMS WITH 400 MM DEPTH



Shelving System Combinations - 400 mm Deep
1275 H x 900 W x 400 D
1875 H x 900 W x 400 D
2175 H x 900 W x 400 D
2375 H x 900 W x 400 D



SHELVING DIMENSIONS 1275 MM (H) X 900MM (W) X 400MM (D)

ASU-6

ASU-7

ASU-8

ASU-9

ASU-10

ASU-6 Shelving Unit Consists of

ASU-7 Shelving Unit Consists of

ASU-8 Shelving Unit Consists of

ASU-9 Shelving Unit Consists of

ASU-10 Shelving Unit Consists of
Shelving Body ASUB 124 1 Set Shelving Body ASUB 124 1 Set Shelving Body ASUB 124 1 Set Shelving Body ASUB 124 1 Set Shelving Body ASUB 124 1 Set
Shelves ASUS 400 13 Nos Shelves ASUS 400 9 Nos Shelves ASUS 400 9 Nos Shelves ASUS 400 8 Nos Shelves ASUS 400 8 Nos
Kick Plate ASUKP 1 No Kick Plate ASUKP 1 No Kick Plate ASUKP 1 No Kick Plate ASUKP NIL Kick Plate ASUKP NIL
Bins per shelf PSB-401 9 Nos Bins per shelf PSB-402 9 Nos Bins per shelf PSB-403 6 Nos Bins per shelf PSB-404 4 Nos Bins per shelf PSB-405 3 Nos

Total 108 Nos PSB-401 Bins

 Total 72 Nos PSB-402 Bins Total 48 Nos PSB-403 Bins

Total 28 Nos PSB-404 Bins

*(No Kick Plate in standard unit. If kick plate is required there will be 7 Nos. ASUS 400 Shelves & 24 Ns. PSB-404 Bins)



 Total 21 Nos PSB-405 Bins

*(No Kick Plate in standard unit. If kick plate is required there will be 7 Nos. ASUS 400 Shelves & 18 Ns. PSB-405 Bins)

PSB-401 BIN SIZE

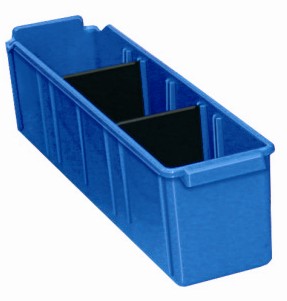

PSB-402 BIN SIZE

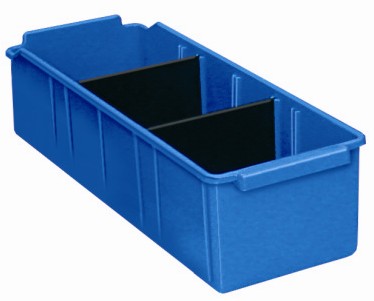

PSB-403 BIN SIZE

PSB-404 BIN SIZE

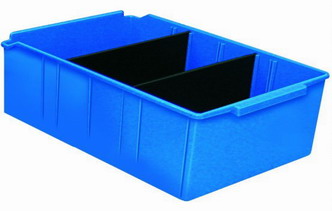

PSB-405 BIN SIZE

Length Width Height Length Width Height Length Width Height Length Width Height Length Width Height
415 mm  100mm 60 mm  415 mm  100mm 110 mm  415 mm  150mm 110 mm  415 mm  220mm 135 mm  415 mm  300mm 135 mm



SHELVING DIMENSIONS 1875 MM (H) X 900MM (W) X 400MM (D)
ASU-31 ASU-32 ASU-33 ASU-34 ASU-35

ASU-31 Shelving Unit Consists of ASU-32 Shelving Unit Consists of ASU-33 Shelving Unit Consists of ASU-34 Shelving Unit Consists of ASU-35 Shelving Unit Consists of
Shelving Body ASUB-184 1 Set Shelving Body ASUB-184 1 Set Shelving Body ASUB-184 1 Set Shelving Body ASUB-184 1 Set Shelving Body ASUB-184 1 Set
Shelves ASUS 400 19 Nos Shelves ASUS 400 13 Nos Shelves ASUS 400 13 Nos Shelves ASUS 400 11Nos Shelves ASUS 400 11Nos
Kick Plate ASUKP 1 No Kick Plate ASUKP 1 No Kick Plate ASUKP 1 No Kick Plate ASUKP 1 No Kick Plate ASUKP 1 No
Bins per shelf PSB-401 9 Nos Bins per shelf PSB-402 9 Nos Bins per shelf PSB-403 6 Nos Bins per shelf PSB-404 4 Nos Bins per shelf PSB-405 3 Nos
Total 162 Nos PSB-401 Bins



 Total 108 Nos PSB-402 Bins



 Total 72 Nos PSB-403 Bins



 Total 40 Nos PSB-404 Bins



 Total 30 Nos PSB-405 Bins



PSB-401 BIN SIZE

PSB-402 BIN SIZE

PSB-403 BIN SIZE

PSB-404 BIN SIZE

PSB-405 BIN SIZE

Length Width Height Length Width Height Length Width Height Length Width Height Length Width Height
415 mm  100mm 60 mm  415 mm  100mm 110 mm  415 mm  150mm 110 mm  415 mm  220mm 135 mm  415 mm  300mm 135 mm

Top

SHELVING DIMENSIONS 2175 MM (H) X 900MM (W) X 400MM (D)
ASU-56 ASU-57 ASU-58 ASU-59 ASU-60
ASU-56 Shelving Unit Consists of ASU-57 Shelving Unit Consists of ASU-58 Shelving Unit Consists of ASU-59 Shelving Unit Consists of ASU-60 Shelving Unit Consists of
Shelving Body ASUB-234 1 Set Shelving Body ASUB-234 1 Set Shelving Body ASUB-234 1 Set Shelving Body ASUB-234 1 Set Shelving Body ASUB-234 1 Set
Shelves ASUS 400 22 Nos Shelves ASUS 400 15 Nos Shelves ASUS 400 15 Nos Shelves ASUS 400 13 Nos Shelves ASUS 400 13 Nos
Kick Plate ASUKP 1 No Kick Plate ASUKP 1 No Kick Plate ASUKP 1 No Kick Plate ASUKP 1 No Kick Plate ASUKP 1 No
Bins per shelf PSB-401 9 Nos Bins per shelf PSB-402 9 Nos Bins per shelf PSB-403 6 Nos Bins per shelf PSB-404 4 Nss Bins per shelf PSB-405 3 Nos
Total 189 Nos PSB-401 Bins



 Total 126 Nos PSB-402 Bins



 Total 84 Nos PSB-403 Bins



 Total 48 Nos PSB-404 Bins



 Total 36 Nos PSB-405 Bins



PSB-401 BIN SIZE

PSB-402 BIN SIZE

PSB-403 BIN SIZE

PSB-404 BIN SIZE

PSB-405 BIN SIZE

Length Width Height Length Width Height Length Width Height Length Width Height Length Width Height
415 mm  100mm 60 mm  415 mm  100mm 110 mm  415 mm  150mm 110 mm  415 mm  220mm 135 mm  415 mm  300mm 135 mm



SHELVING DIMENSIONS 2375 MM (H) X 900MM (W) X 400MM (D)
ASU-81 ASU-82 ASU-83 ASU-84 ASU-85
ASU-81 Shelving Unit Consists of ASU-82 Shelving Unit Consists of ASU-83 Shelving Unit Consists of ASU-84 Shelving Unit Consists of ASU-85 Shelving Unit Consists of
Shelving Body ASUB-234 1 Set Shelving Body ASUB-234 1 Set Shelving Body ASUB-234 1 Set Shelving Body ASUB-234 1 Set Shelving Body ASUB-234 1 Set
Shelves ASUS 400 24 Nos Shelves ASUS 400 16 Nos Shelves ASUS 400 16 Nos Shelves ASUS 400 14 Nos Shelves ASUS 400 14 Nos
Kick Plate ASUKP 1 No Kick Plate ASUKP 1 No Kick Plate ASUKP 1 No Kick Plate ASUKP 1 No Kick Plate ASUKP 1 No
Bins per shelf PSB-401 9 Nos Bins per shelf PSB-402 9 Nos Bins per shelf PSB-403 6 Nos Bins per shelf PSB-404 4 Nss Bins per shelf PSB-405 3 Nos
Total 207 Nos PSB-401 Bins



 Total 135 Nos PSB-402 Bins



 Total 90 Nos PSB-403 Bins



 Total 52 Nos PSB-404 Bins



 Total 39 Nos PSB-405 Bins



PSB-401 BIN SIZE

PSB-402 BIN SIZE

PSB-403 BIN SIZE

PSB-404 BIN SIZE

PSB-405 BIN SIZE

Length Width Height Length Width Height Length Width Height Length Width Height Length Width Height
415 mm  100mm 60 mm  415 mm  100mm 110 mm  415 mm  150mm 110 mm  415 mm  220mm 135 mm  415 mm  300mm 135 mm
