PANDA SHELVING SYSTEMS




ALKON

 PANDA SHELVING SYSTEMS WITH 300 MM DEPTH



Shelving System Combinations - 300 mm Deep
1275 H x 900 W x 300 D
1875 H x 900 W x 300 D
2175 H x 900 W x 300 D
2375 H x 900 W x 300 D



SHELVING DIMENSIONS 1275 MM (H) X 900MM (W) X 300MM (D)

ASU-1

ASU-2

ASU-3

ASU-4*

ASU-5*

ASU-1 Shelving Unit Consists of

ASU-2 Shelving Unit Consists of

ASU-3 Shelving Unit Consists of

ASU-4 Shelving Unit Consists of

ASU-5 Shelving Unit Consists of
Shelving Body ASUB 123 1 Set Shelving Body ASUB 123 1 Set Shelving Body ASUB 123 1 Set Shelving Body ASUB 123 1 Set Shelving Body ASUB 123 1 Set
Shelves ASUS 300 13 Nos Shelves ASUS 300 9 Nos Shelves ASUS 300 9 Nos Shelves ASUS 300 8 Nos Shelves ASUS 300 8 Nos
Kick Plate ASUKP 1 No Kick Plate ASUKP 1 No Kick Plate ASUKP 1 No Kick Plate ASUKP NIL Kick Plate ASUKP NIL
Bins per shelf PSB-301 9 Nos Bins per shelf PSB-302 9 Nos Bins per shelf PSB-303 6 Nos Bins per shelf PSB-304 28 Nos Bins per shelf PSB-305 3 Nos

Total 108 Nos PSB-301 Bins

 Total 72 Nos PSB-302 Bins Total 48 Nos PSB-303 Bins

Total 28 Nos PSB-304 Bins

*(No Kick Plate in standard unit. If kick plate is required there will be 7 Nos. ASUS 300 Shelves & 24 Ns. PSB-304 Bins)



 Total 21 Nos PSB-305 Bins

*(No Kick Plate in standard unit. If kick plate is required there will be 7 Nos. ASUS 300 Shelves & 18 Ns. PSB-305 Bins)

PSB-301 BIN SIZE

PSB-302 BIN SIZE

PSB-303 BIN SIZE

PSB-304 BIN SIZE

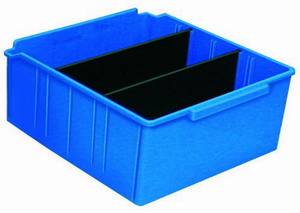

PSB-305 BIN SIZE

Length Width Height Length Width Height Length Width Height Length Width Height Length Width Height
315 mm  100mm 60 mm  315 mm  100mm 110 mm  315 mm  150mm 110 mm  315 mm  220mm 135 mm  315 mm  300mm 135 mm



SHELVING DIMENSIONS 1875 MM (H) X 900MM (W) X 300MM (D)
ASU-26 ASU-27 ASU-28 ASU-29 ASU-30

ASU-26 Shelving Unit Consists of ASU-27 Shelving Unit Consists of ASU-28 Shelving Unit Consists of ASU-29 Shelving Unit Consists of ASU-30 Shelving Unit Consists of
Shelving Body ASUB-183 1 Set Shelving Body ASUB-183 1 Set Shelving Body ASUB-183 1 Set Shelving Body ASUB-183 1 Set Shelving Body ASUB-183 1 Set
Shelves ASUS 300 19 Nos Shelves ASUS 300 13 Nos Shelves ASUS 300 13 Nos Shelves ASUS 300 11Nos Shelves ASUS 300 11Nos
Kick Plate ASUKP 1 No Kick Plate ASUKP 1 No Kick Plate ASUKP 1 No Kick Plate ASUKP 1 No Kick Plate ASUKP 1 No
Bins per shelf PSB-301 9 Nos Bins per shelf PSB-302 9 Nos Bins per shelf PSB-303 6 Nos Bins per shelf PSB-304 4 Nos Bins per shelf PSB-305 3 Nos
Total 162 Nos PSB-301 Bins



 Total 108 Nos PSB-302 Bins



 Total 72 Nos PSB-303 Bins



 Total 40 Nos PSB-304 Bins



 Total 30 Nos PSB-305 Bins



PSB-301 BIN SIZE

PSB-302 BIN SIZE

PSB-303 BIN SIZE

PSB-304 BIN SIZE

PSB-305 BIN SIZE

Length Width Height Length Width Height Length Width Height Length Width Height Length Width Height
315 mm  100mm 60 mm  315 mm  100mm 110 mm  315 mm  150mm 110 mm  315 mm  220mm 135 mm  315 mm  300mm 135 mm

Top

SHELVING DIMENSIONS 2175 MM (H) X 900MM (W) X 300MM (D)
ASU-51 ASU-52 ASU-53 ASU-54 ASU-55
ASU 51 ASU 52 ASU 53 ASU 54 ASU 55
ASU-51 Shelving Unit Consists of ASU-52 Shelving Unit Consists of ASU-53 Shelving Unit Consists of ASU-54 Shelving Unit Consists of ASU-55 Shelving Unit Consists of
Shelving Body ASUB-213 1 Set Shelving Body ASUB-213 1 Set Shelving Body ASUB-213 1 Set Shelving Body ASUB-213 1 Set Shelving Body ASUB-213 1 Set
Shelves ASUS 300 22 Nos Shelves ASUS 300 15 Nos Shelves ASUS 300 15 Nos Shelves ASUS 300 13 Nos Shelves ASUS 300 13 Nos
Kick Plate ASUKP 1 No Kick Plate ASUKP 1 No Kick Plate ASUKP 1 No Kick Plate ASUKP 1 No Kick Plate ASUKP 1 No
Bins per shelf PSB-301 9 Nos Bins per shelf PSB-302 9 Nos Bins per shelf PSB-303 6 Nos Bins per shelf PSB-304 4 Ns Bins per shelf PSB-305 3 Nos
Total 189 Nos PSB-301 Bins



 Total 126 Nos PSB-302 Bins



 Total 84 Nos PSB-303 Bins



 Total 48 Nos PSB-304 Bins



 Total 36 Nos PSB-305 Bins



PSB-301 BIN SIZE

PSB-302 BIN SIZE

PSB-303 BIN SIZE

PSB-304 BIN SIZE

PSB-305 BIN SIZE

Length Width Height Length Width Height Length Width Height Length Width Height Length Width Height
315 mm  100mm 60 mm  315 mm  100mm 110 mm  315 mm  150mm 110 mm  315 mm  220mm 135 mm  315 mm  300mm 135 mm



SHELVING DIMENSIONS 2375 MM (H) X 900MM (W) X 300MM (D)
ASU-76 ASU-77 ASU-78 ASU-79 ASU-80
ASU-76 Shelving Unit Consists of ASU-77 Shelving Unit Consists of ASU-78 Shelving Unit Consists of ASU-79 Shelving Unit Consists of ASU-80 Shelving Unit Consists of
Shelving Body ASUB-233 1 Set Shelving Body ASUB-233 1 Set Shelving Body ASUB-233 1 Set Shelving Body ASUB-233 1 Set Shelving Body ASUB-233 1 Set
Shelves ASUS 300 24 Nos Shelves ASUS 300 16 Nos Shelves ASUS 300 16 Nos Shelves ASUS 300 14 Nos Shelves ASUS 300 14 Nos
Bins per shelf PSB-301 9 Nos Bins per shelf PSB-302 9 Nos Bins per shelf PSB-303 6 Nos Bins per shelf PSB-304 4 Ns Bins per shelf PSB-305 3 Nos
Total 207 Nos PSB-301 Bins



 Total 135 Nos PSB-302 Bins



 Total 90 Nos PSB-303 Bins



 Total 52 Nos PSB-304 Bins



 Total 39 Nos PSB-305 Bins



PSB-301 BIN SIZE

PSB-302 BIN SIZE

PSB-303 BIN SIZE

PSB-304 BIN SIZE

PSB-305 BIN SIZE

Length Width Height Length Width Height Length Width Height Length Width Height Length Width Height
315 mm  100mm 60 mm  315 mm  100mm 110 mm  315 mm  150mm 110 mm  315 mm  220mm 135 mm  315 mm  300mm 135 mm
