PANDA SHELVING SYSTEMS




ALKON

 PANDA SHELVING SYSTEMS WITH 450 MM DEPTH



Shelving System Combinations - 450 mm Deep
1275 H x 900 W x 450 D
1875 H x 900 W x 450 D
2175 H x 900 W x 450 D
2375 H x 900 W x 450 D



SHELVING DIMENSIONS 1275 MM (H) X 900MM (W) X 450MM (D)

ASU-11

ASU-12

ASU-13

ASU-14

ASU-15

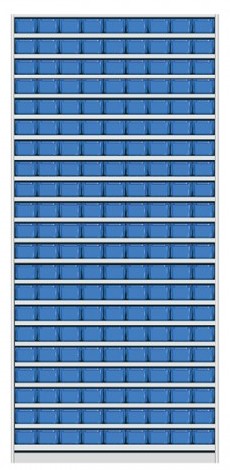

ASU-11 Shelving Unit Consists of

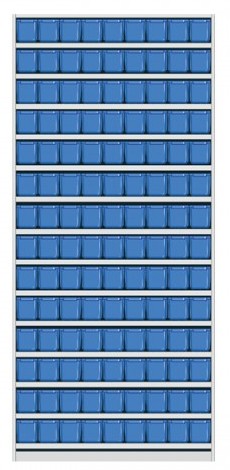

ASU-12 Shelving Unit Consists of

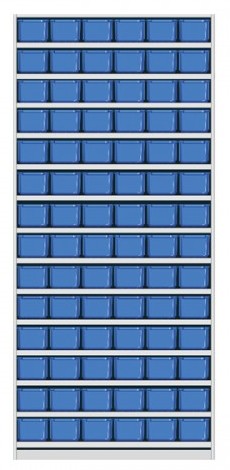

ASU-13 Shelving Unit Consists of

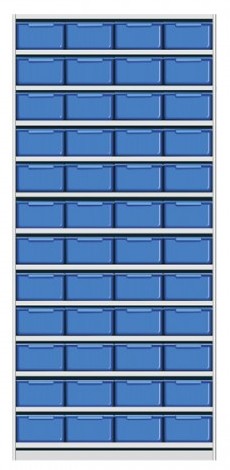

ASU-14 Shelving Unit Consists of

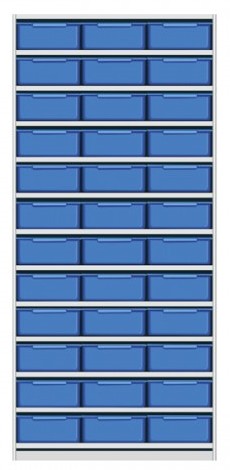

ASU-15 Shelving Unit Consists of
Shelving Body ASUB 1245 1 Set Shelving Body ASUB 1245 1 Set Shelving Body ASUB 1245 1 Set Shelving Body ASUB 1245 1 Set Shelving Body ASUB 1245 1 Set
Shelves ASUS 450 13 Nos Shelves ASUS 450 9 Nos Shelves ASUS 450 9 Nos Shelves ASUS 450 8 Nos Shelves ASUS 450 8 Nos
Kick Plate ASUKP 1 No Kick Plate ASUKP 1 No Kick Plate ASUKP 1 No Kick Plate ASUKP Nil Kick Plate ASUKP Nil
Bins per shelf PSB-451 9 Nos Bins per shelf PSB-452 9 Nos Bins per shelf PSB-453 6 Nos Bins per shelf PSB-454 4 Nos Bins per shelf PSB-455 3 Nos

Total 108 Nos PSB-451 Bins

 Total 72 Nos PSB-452 Bins Total 48 Nos PSB-453 Bins

Total 28 Nos PSB-454 Bins

*(No Kick Plate in standard unit. If kick plate is required there will be 7 Nos. ASUS 400 Shelves & 24 Ns. PSB-454 Bins)



 Total 21 Nos PSB-455 Bins

*(No Kick Plate in standard unit. If kick plate is required there will be 7 Nos. ASUS 400 Shelves & 18 Ns. PSB-455 Bins)

PSB-451 BIN SIZE

PSB-452 BIN SIZE

PSB-453 BIN SIZE

PSB-454 BIN SIZE

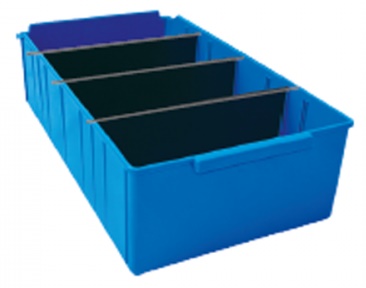

PSB-455 BIN SIZE

Length Width Height Length Width Height Length Width Height Length Width Height Length Width Height
465 mm  100mm 60 mm  465 mm  100mm 110 mm  465 mm  150mm 110 mm  465 mm  220mm 135 mm  465 mm  300mm 135 mm





SHELVING DIMENSIONS 1875 MM (H) X 900MM (W) X 450MM (D)
ASU-36 ASU-37 ASU-38 ASU-39 ASU-40

ASU-36 Shelving Unit Consists of ASU-37 Shelving Unit Consists of ASU-38 Shelving Unit Consists of ASU-39 Shelving Unit Consists of ASU-40 Shelving Unit Consists of
Shelving Body ASUB-1845 1 Set Shelving Body ASUB-1845 1 Set Shelving Body ASUB-1845 1 Set Shelving Body ASUB-1845 1 Set Shelving Body ASUB-1845 1 Set
Shelves ASUS 450 19 Nos Shelves ASUS 450 13 Nos Shelves ASUS 450 13 Nos Shelves ASUS 450 11Nos Shelves ASUS 450 11Nos
Kick Plate ASUKP 1 No Kick Plate ASUKP 1 No Kick Plate ASUKP 1 No Kick Plate ASUKP 1 No Kick Plate ASUKP 1 No
Bins per shelf PSB-451 9 Nos Bins per shelf PSB-452 9 Nos Bins per shelf PSB-453 6 Nos Bins per shelf PSB-454 4 Nos Bins per shelf PSB-455 3 Nos
Total 162 Nos PSB-451 Bins



 Total 108 Nos PSB-452 Bins



 Total 72 Nos PSB-453 Bins



 Total 40 Nos PSB-454 Bins



 Total 30 Nos PSB-455 Bins



PSB-451 BIN SIZE

PSB-452 BIN SIZE

PSB-453 BIN SIZE

PSB-454 BIN SIZE

PSB-455 BIN SIZE

Length Width Height Length Width Height Length Width Height Length Width Height Length Width Height
465 mm  100mm 60 mm  465 mm  100mm 110 mm  465 mm  150mm 110 mm  465 mm  220mm 135 mm  465 mm  300mm 135 mm

Top

SHELVING DIMENSIONS 2175 MM (H) X 900MM (W) X 450MM (D)
ASU-61 ASU-62 ASU-63 ASU-64 ASU-65
ASU-61 Shelving Unit Consists of ASU-62 Shelving Unit Consists of ASU-63 Shelving Unit Consists of ASU-64 Shelving Unit Consists of ASU-65 Shelving Unit Consists of
Shelving Body ASUB-2345 1 Set Shelving Body ASUB-2345 1 Set Shelving Body ASUB-2345 1 Set Shelving Body ASUB-2345 1 Set Shelving Body ASUB-2345 1 Set
Shelves ASUS 450 22 Nos Shelves ASUS 450 15 Nos Shelves ASUS 450 15 Nos Shelves ASUS 450 13 Nos Shelves ASUS 450 13 Nos
Kick Plate ASUKP 1 No Kick Plate ASUKP 1 No Kick Plate ASUKP 1 No Kick Plate ASUKP 1 No Kick Plate ASUKP 1 No
Bins per shelf PSB-451 9 Nos Bins per shelf PSB-452 9 Nos Bins per shelf PSB-453 6 Nos Bins per shelf PSB-454 4 Nss Bins per shelf PSB-455 3 Nos
Total 189 Nos PSB-451 Bins



 Total 126 Nos PSB-452 Bins



 Total 84 Nos PSB-453 Bins



 Total 48 Nos PSB-454 Bins



 Total 36 Nos PSB-455 Bins



PSB-451 BIN SIZE

PSB-452 BIN SIZE

PSB-453 BIN SIZE

PSB-454 BIN SIZE

PSB-455 BIN SIZE

Length Width Height Length Width Height Length Width Height Length Width Height Length Width Height
465 mm  100mm 60 mm  465 mm  100mm 110 mm  465 mm  150mm 110 mm  465 mm  220mm 135 mm  465 mm  300mm 135 mm



SHELVING DIMENSIONS 2375 MM (H) X 900MM (W) X 450MM (D)
ASU-86 ASU-87 ASU-88 ASU-89 ASU-90
ASU-86 Shelving Unit Consists of ASU-87 Shelving Unit Consists of ASU-88 Shelving Unit Consists of ASU-89 Shelving Unit Consists of ASU-90 Shelving Unit Consists of
Shelving Body ASUB-2345 1 Set Shelving Body ASUB-2345 1 Set Shelving Body ASUB-2345 1 Set Shelving Body ASUB-2345 1 Set Shelving Body ASUB-2345 1 Set
Shelves ASUS 450 24 Nos Shelves ASUS 450 16 Nos Shelves ASUS 450 16 Nos Shelves ASUS 450 14 Nos Shelves ASUS 450 14 Nos
Kick Plate ASUKP 1 No Kick Plate ASUKP 1 No Kick Plate ASUKP 1 No Kick Plate ASUKP 1 No Kick Plate ASUKP 1 No
Bins per shelf PSB-451 9 Nos Bins per shelf PSB-452 9 Nos Bins per shelf PSB-453 6 Nos Bins per shelf PSB-454 4 Nss Bins per shelf PSB-455 3 Nos
Total 207 Nos PSB-451 Bins



 Total 135 Nos PSB-452 Bins



 Total 90 Nos PSB-453 Bins



 Total 52 Nos PSB-454 Bins



 Total 39 Nos PSB-455 Bins



PSB-451 BIN SIZE

PSB-452 BIN SIZE

PSB-453 BIN SIZE

PSB-454 BIN SIZE

PSB-455 BIN SIZE

Length Width Height Length Width Height Length Width Height Length Width Height Length Width Height
465 mm  100mm 60 mm  465 mm  100mm 110 mm  465 mm  150mm 110 mm  465 mm  220mm 135 mm  465 mm  300mm 135 mm

Top
