BULL BINS







Made from Polypropylene Copolymer

  • Provision for vertical partitions to increase storage options in Bull Bin 25, Bull Bin 35 & Bull Bin 45.

  • Full length rear lip supports provided for hanging bins on louvered panels or rails. (Except for Bull Bin 55)

  • Resistant to most industrial solvents.

  • Anti skid strips provided at the base.

  • Bins are designed to stack one on top of each other.

  • Extra wide stacking base for secure stacking.

  • Tapered front & rear bottom for easy movement on conveyers. Stopper prevents stacked bins from shifting forward.

  • Extra wide label slot for easy content identification.






Art No : BIN 5
Outside Dimensions in mm : 168 (L) x 102 (W) x 74 (H)
Inside Dimensions in mm : 145 (L) x 86 (W) x 66 (H)
Effective Height in mm : 38
Standard Packing : 60 pcs. per ctn.
Volume Per Box CBM : 0.0801
Slots for Partition : NA
Colour : Red / Blue

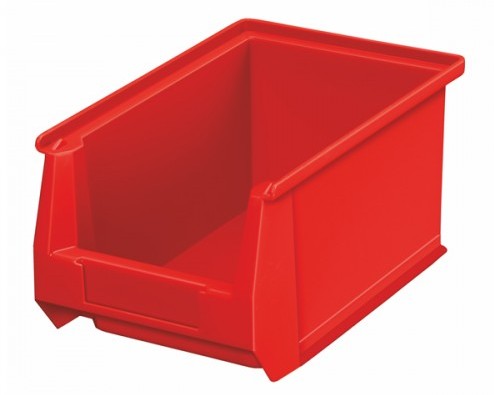

Art No : BIN 15
Outside Dimensions in mm : 201 (L) x 125 (W) x 101 (H)
Inside Dimensions in mm : 178 (L) x 105 (W) x 92 (H)
Effective Height in mm : 48
Standard Packing : 40 pcs. per ctn.
Volume Per Box CBM : 0.1056
Slots for Partition : NA
Colour : Red / Blue

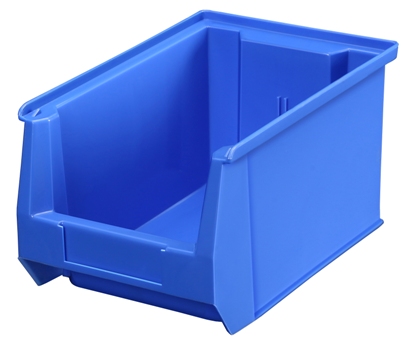

Art No : BIN 25
Outside Dimensions in mm : 229 (L) x 150 (W) x 126 (H)
Inside Dimensions in mm : 192 (L) x 128 (W) x 114 (H)
Effective Height in mm : 58
Standard Packing : 50 pcs. per ctn.
Volume Per Box CBM : 0.2129
Slots for Partition : 1 Slot for Vertical Partition.
Colour : Red / Blue

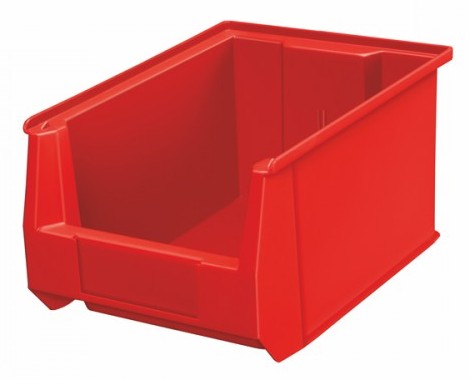

Art No : BIN 35
Outside Dimensions in mm : 300 (L) x 208 (W) x 158 (H)
Inside Dimensions in mm : 255 (L) x 185 (W) x 145 (H)
Effective Height in mm : 80
Standard Packing : 20 pcs. per ctn..
Volume Per Box CBM : 0.2087
Slots for Partition : 1 Slot for Vertical Partition.
Colour : Red / Blue

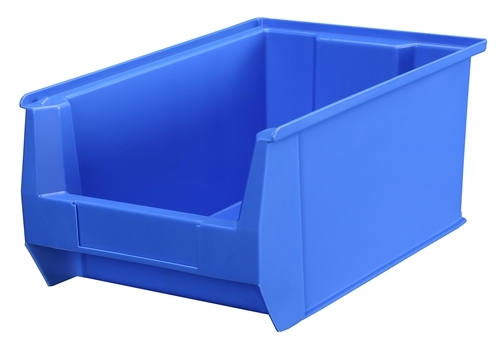

Art No : BIN 45
Outside Dimensions in mm : 348 (L) x 210 (W) x 200 (H)
Inside Dimensions in mm : 305 (L) x 187 (W) x 185 (H)
Effective Height in mm : 110
Standard Packing : 10 pcs. per ctn.
Volume Per Box CBM : 0.1539
Slots for Partition : 1 Slot for Vertical Partition.
Colour : Red / Blue

Art No : BIN 55
Outside Dimensions in mm : 510 (L) x 310 (W) x 200 (H)
Inside Dimensions in mm : 480 (L) x 280 (W) x 195 (H)
Effective Height in mm : 85
Standard Packing : 8 pcs. per ctn.
Volume Per Box CBM : 0.2677
Slots for Partition : NA
Colour : Red / Blue



Top



PARTITIONS FOR BULL BINS

Bull Bin 25 with 1 No
VP BULL BIN 25
Standard Packing :
10 pcs. per ctn.
Bull Bin 35 with 1 No
VP BULL BIN 35
Standard Packing :
10 pcs. per ctn.
Bull Bin 45 with 1 No
VP BULL BIN 45
Standard Packing :
10 pcs. per ctn.






UNIVERSAL RAIL : AUR-1

Art No : AUR -1

Universal Rails are made from 1.5mm (T) CRCA Steel duly powder coated in Light Grey RAL 7035 colour and can be mounted on any surface like walls, benches, slotted angle systems, stands, and trolleys. These rails increase the flexibility of using different sizes of bins with ease and help in optimizing storage space.

The added feature of this rail is that when you use multiple rails one below each other from the second rail onwards the top part of the rails can be used as a support to the lower part of the bin mounted on the above rail and the bottom part of the rail can be used to mount the bin and so on, this helps in using lesser number of rails in the case when bins of height more than 130mm are used.

Dimension : 915mm (L) x 60mm (H)

Colour : Light Grey RAL 7035.

BULL BINS

Bull Bin Bull Bin Bull Bin Bull Bin Bull Bin
5 15 25 35 45

Bins per rail

9 7 6 4 4






LOUVRE PANELS

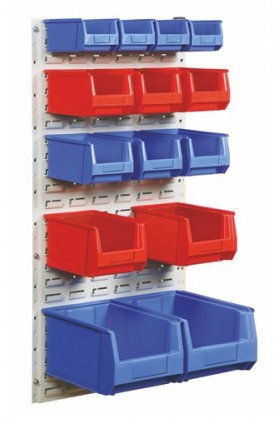

LP 3 Louvre Panel fitted with Bull Bins.

Louvre Panels are manufactured from 1.5mm CRCA steel and powder coated in Light Grey RAL 7035 colour.

BULL BINS can be mounted with ease in variable combinations as listed below :

Number of Bins Per Louvre Panel

Art No LP1 LP2 LP3 LP6
Size 457 x 457 457 x 610 457 x 914 457 x1829
Bull Bin 5 24 36 48 96
Bull Bin 15 12 15 24 48
Bull Bin 25 9 12 18 36
Bull Bin 35 4 6 10 20
Bull Bin 45 4 6 8 16

Top

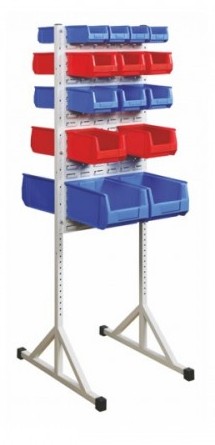

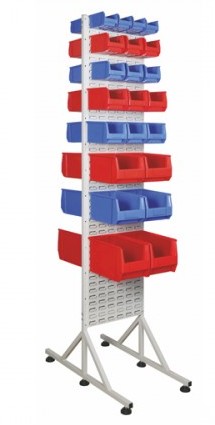

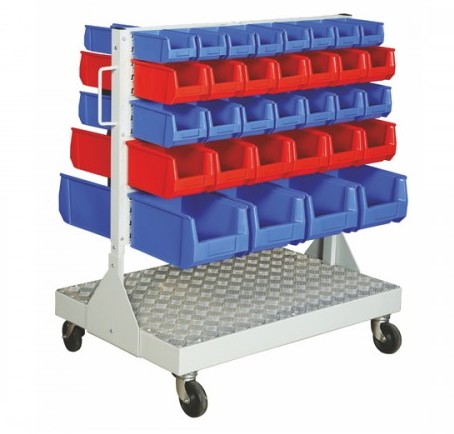

For Bull Bins on FSS Louvre Panels Stands & Trolley Click Here

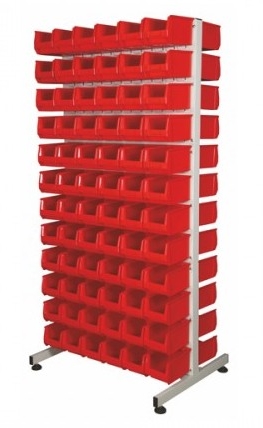

For Bull Bins on Tuff Louvre Panel Stands & Trolley Click here
