KOALA PICK BINS











ART NO

 OUTSIDE DIMENSIONS INSIDE DIMENSIONS
Length Width Height Length Width Height
AKP-01 130 105 60 105 90 55
AKP-11 180 105 90 105 90 85
AKP-22 220 140 140 195 125 135
AKP-32 300 140 140 270 125 135
AKP-33 300 215 140 270 200 135
AKP-35 300 435 140 270 410 135
AKP-42 400 145 200 360 125 195
AKP-43 400 215 200 360 200 195
All Dimensions in mm approx.



FEATURES:

MADE FROM POLYPROPYLENE COPOLYMER

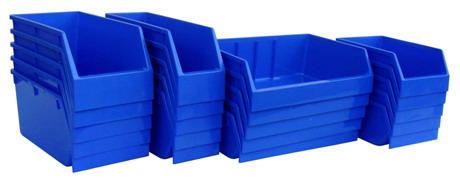

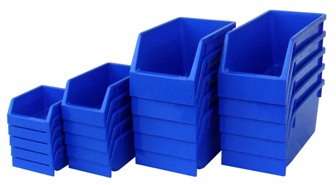

  • KOALA BINS nest to save transportation cost by almost 70%
  • The clear design of Koala Bins make them easy to clean and use in dust free environments like Hospitals
  • Extra wide front face for sticking identification labels for easy content identification.
  • KOALA BINS AKP-01 / AKP-11 / AKP-22 / AKP-32 / AKP-33 / AKP-35 have full length rear lip supports provided for hanging bins on louvered panels or rails.
  • KOALA BINS AKP-32 / AKP-33 / AKP-35 / AKP-42 / AKP-43 designed to fit roll post shelving system
  • Anti Skid strips provided at the base.
  • COLOUR OF BINS : BLUE

Top

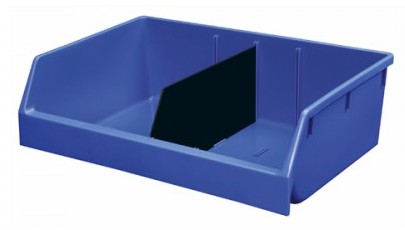

PARTITIONS FOR KOALA BINS




KOALA BIN AKP-35 VERTICAL PARTITION

Vertical Partition for Koala Bin AKP-35 available as an accessory to increase storage space

ART NO: AKP-35-VP

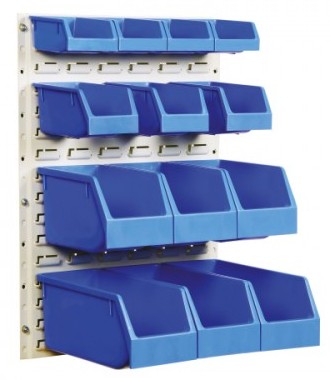

LOUVRE PANELS



LOUVRE PANELS are manufactured from 1.5mm CRCA steel  and powder coated in grey colour..

KOALA Bins can be mounted with ease in variable combinations as listed below:

LOUVRE PANEL NUMBER OF BINS
ART No SIZE MM. AKP-01 AKP-11 AKP-22 AKP-32 AKP-33 AKP-35
LP-1 457 X 457 24 16 9 9 6 3
LP-2 457 X 610 32 20 12 12 8 4
LP-3 457 X 914 48 32 18 18 12 6
LP-6 457 X 1829 96 64 36 36 24 12

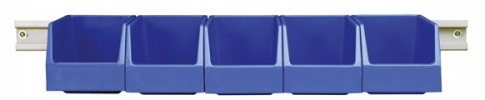

UNIVERSAL RAIL



UNIVERSAL RAIL [Size: 914mm (L) x 75mm (H)] made from steel and powder coated in grey colour can be mounted on any surface like walls, benches, slotted angle system, stands and trolleys. These rails increase the flexibility of using different sizes of bins with ease and help in optimizing storage space.

ART No. AUR-1

Number of bins per UNIVERSAL RAIL
ART No AKP-01 AKP-11 AKP-22 AKP-32 AKP-33 AKP-35
No. Of Bins 8 8 6 6 4 2

Top

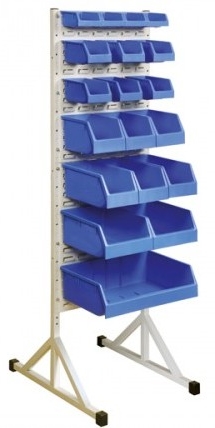

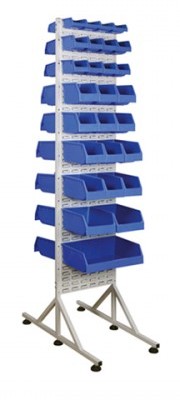

FSS STANDS & TROLLY FOR KOALA BINS



FOR KOALA BINS ON FSS STANDS AND TROLLEY

CLICK HERE

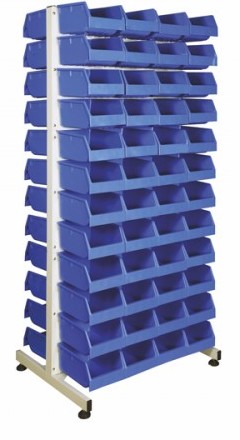

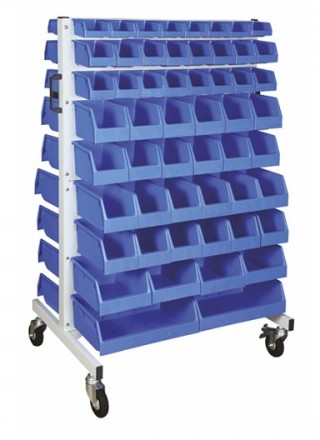

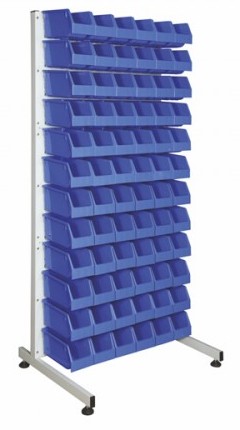

TUFF STANDS & TUFF TROLLY FOR KOALA BINS



FOR KOALA BINS ON TUFF STANDS AND TUFF TROLLEY

CLICK HERE

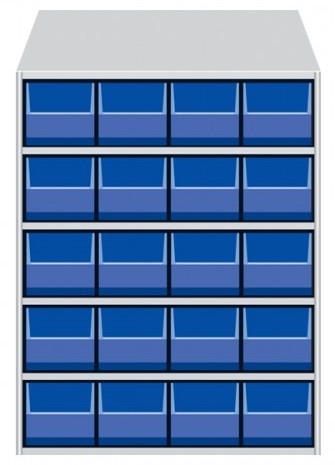

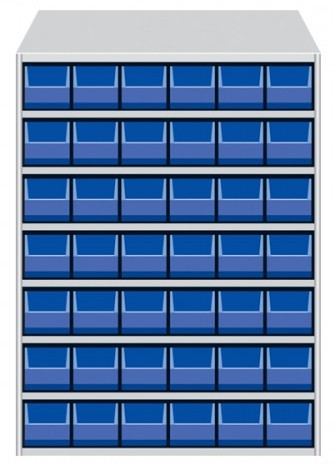

SHELVING SYSTEMS FOR KOALA BINS

FOR KOALA SHELVING SYSTEM 300mm DEPTH CLICK HERE



FOR KOALA SHELVING SYSTEM 400mm DEPTH CLICK HERE



TO DOWNLOAD KOALA PICK BINS CATALOG CLICK HERE
