ALKON RHINO BINS - ON TUFF LOUVRE PANEL STANDS

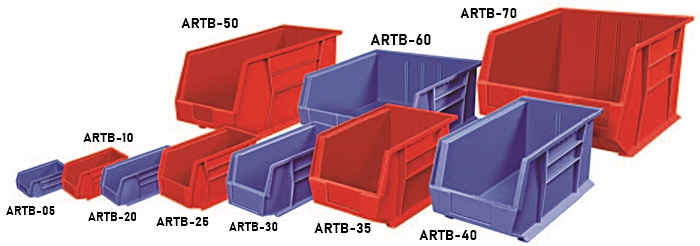

ART N0	No. of Rhino Tuff Bins on Alkon Tuff Stand		No. of Rhino Tuff Bins on Alkon Tuff Trolley
ART N0	Single Sided	Double Sided	Single Sided	Double Sided
ARTB-05	192	384	128	256
ARTB-10	128	256	88	176
ARTB-20	128	256	88	176
ARTB-25	72	144	48	96
ARTB-30	72	144	48	96
ARTB-35	36	72	24	48
ARTB-40	36	72	24	48
ARTB-60	18	36	12	24

ALKON TUFF SINGLE SIDED STAND : ATSSS

These stands are made from M.S. Steel Rectangular Pipes of size 25mm (L) x 50mm (W) x 1.6mm (T).

These stands are used to mount three panels of ATSLP 914mm (W) X 610mm (H) on single side.

Dimension : 915mm (W) x 550mm (D) x 1925mm (H)
Colour : Light Grey RAL 7035.

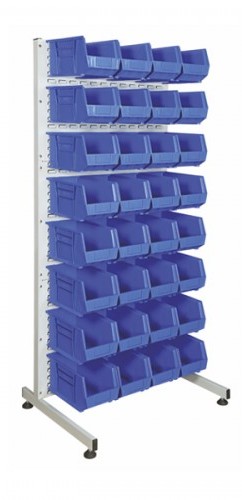

ATSSS Stand Fitted with Rhino ARTB-40 Bins on single side.

ALKON TUFF DOUBLE SIDED STAND : ATDSS

These stands are made from M.S. Steel Rectangular Pipes of size 25mm (L) x 50mm (W) x 1.6mm (T).

These stands are used to mount three panels of ATSLP 914 X 610 on each side.

Dimension : 915mm (W) x 700mm (D) x 1925mm (H)
Colour : Light Grey RAL 7035.

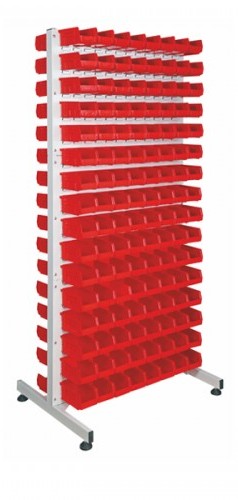

ATSSS Stand Fitted with Rhino ARTB-20 Bins on both the sides.

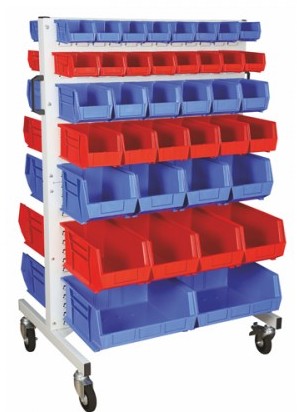

ALKON TUFF TROLLEY : ATTB

Art No : ATTB

Trolley without Louvre Panels and bins.
(Order 2 Nos of ATSLP 914 x 610 for single side use and 4 Nos of ATSLP 914 x 610 for double side use separately).

Dimension : 995mm (W) x 700mm (D) x 1430mm (H)
(Considering castor wheel extension width wise inclusive of handle)

Colour : Light Grey RAL 7035.

Alkon Tuff Trolleys are made from Rectangular Steel Pipes of size 25mm (L) x 50mm (W) x 1.6mm (T) duly powder coated in Light Grey RAL 7035 colour.

Trolleys save time travelling to items stored in static shelving installations by putting all your small parts storage bins onto the trolley.

Trolley can be used single sided or double sided as per requirement.

Each trolley comes fitted with ergonomic plastic handles so that the trolley can be comfortably moved.

The trolley is fitted with heavy duty swivel castors that offer ease of movement. Two of the castors are braked, which means the trolley can be secured when not in use.
