ALKON HIPPO BINS ON STANDS

STAND FOR CHANNELS 612/SC, 612MC & 612 BC

Free standing stand FSS/C are made from M.S. Steel Square Pipes of size 25mm (L) x 25mm (W) x 1.2mm (T) and are duly powder coated in Light Grey RAL 7035 colour.

Stands are fitted with ergonomic plastic shoes for proper stability.

Order Bins, Stands and Channels separately

Art No : FSS/C
Dimension : 665mm (W) X 1553 mm (H) X 610 mm (D)

Colour : Light Grey RAL 7035.

ART No	Number of Channels per FSS Stand	Size of Bin	No. of Bins per Channel
612SC	12	612 / S	6
612MC	8	612 / M	4
612BC	7	612 / B	3

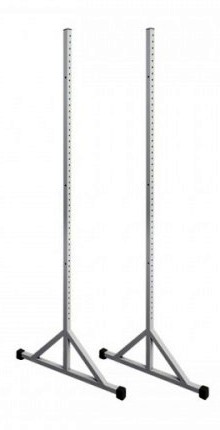

FSS/C
Stand For Channel

Channels to be used on FSS/C Stand

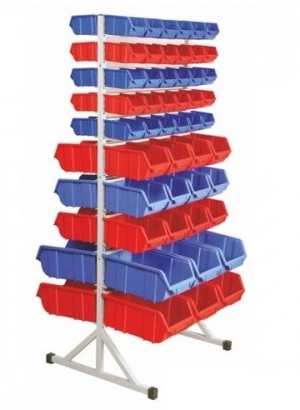

FSS/C Stand fitted with Hippo Bins


LOUVRE PANEL STAND : FSS/C
Free standing stand FSS/C are made from M.S. Steel Square Pipes of size 25mm (L) x 25mm (W) x 1.2mm (T) and are duly powder coated in Light Grey RAL 7035 colour. Stands are fitted with ergonomic plastic shoes for proper stability. These stands are used to mount louvre panels - LP 1, LP 2 or LP 3. Louvres can be mounted on single side or both sides for dual use. Order Bins, Stands and Louvre Panels separately	Art No : FSS/C Dimension : 457 mm (W) X 630 mm (D) X 1560 mm (H) Colour : Light Grey RAL 7035.

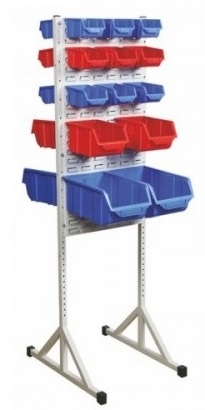

FSS/C Fitted with Louvre Panel LP 3- 2 Nos (1 No on each side).	FSS/C Fitted with Louvre Panel LP 2- 4 Nos ( 2 Nos on each side).

LOUVRE PANEL STAND :FSS/LP 6

Art No : FSS/LP 6
Dimension : 457mm (W) X 905mm (D) X 2160mm (H)

Colour : Light Grey RAL 7035.

Free standing stand FSS/LP 6 are made from M.S. Steel Square Pipes of size 25mm (L) x 25mm (W) x 1.2mm (T) and are duly powder coated in Light Grey RAL 7035 colour.

Stands are fitted with ergonomic plastic shoes for proper stability.

These stands are used to mount Louvre Panel LP 6.Louvres can be mounted on single side or both sides for dual use.

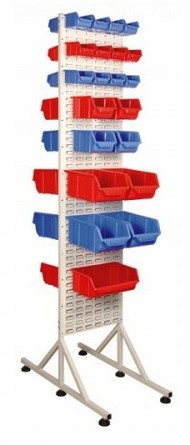

FSS/C Fitted with Louvre Panel LP 6- 2 Nos (1 No on each side)

UNIVERSAL RAIL : AUR-1

Universal Rails are made from 1.5 CRCA Steel duly powder
coated in Light Grey RAL 7035 colour and can be mounted
on any surface like walls, benches, slotted angle systems, stands, and trolleys. These rails increase the flexibility of using different sizes of bins with ease and help in optimizing storage space.

Art No : AUR -1
Dimension : 915mm (L) x 60mm (H)
Colour : Light Grey RAL 7035.

Art No	612/T	612/S	612/S2	612/M	612/DW	612/B
No. of Bins	8	8	8	5	2	4

SHOP FLOOR TROLLEY : SFT

Dimension : 970mm (W) x 600mm (D) x 1100mm (H)
Colour : Light Grey RAL 7035.
Trolley without Louvre Panels and bins.
(Order 2 Nos of LP 2 for single side use and 4 Nos of LP 2 for
double side use separately).

Alkon Shop Floor Trolleys are made from MS steel Rectangular Pipes of size 20mm (L) x 40mm (W) x 1.2mm (T) and duly powder coated in Light Grey RAL 7035 colour.

Trolleys can be used single sided or double sided as per requirement. Ideal for component storage and transfer to assembly or production areas.

Unit comprises of base unit with aluminium checkered top plate fitted with castors and a frame on which two Louvre Panels of size LP 2 can be fitted on each side. Trolley has handles on both sides. It is packed in knock down condition.

SHOP FLOOR TROLLEY - SFT
Fitted with mixed Hippo Bins on both the sides.
