SUPRA BINS

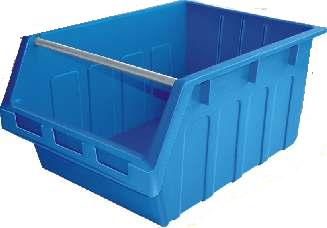

SUPRA BIN SB - 8



ALKON SUPRA BIN SB-8,  a bin which creates a new dimension in storage by giving easy frontal access to the contents stored in the bin and also saves valuable space

ART NO SB-8

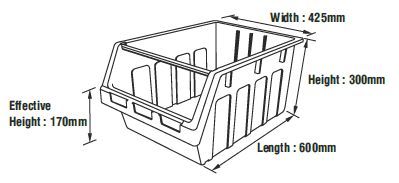

Outter Dimensions : L 600 x W 425 x H 300 mm (Approx.)

Inner Dimensions  : L 530 x W 375 x H 290 mm (Approx.)

Effective Height  : 170 mm (Approx.)



SUPRA BIN SB-8 designed to suit the versatile needs of the customer and to give optimum space utility

UDL 150 Kgs. UDL 150 Kgs. UDL 150 Kgs. UDL 150 Kgs.

Uniform distributed load bearing capacity of SB-8 at different stack heights



  • Bin with largest effective height of 170 mm.

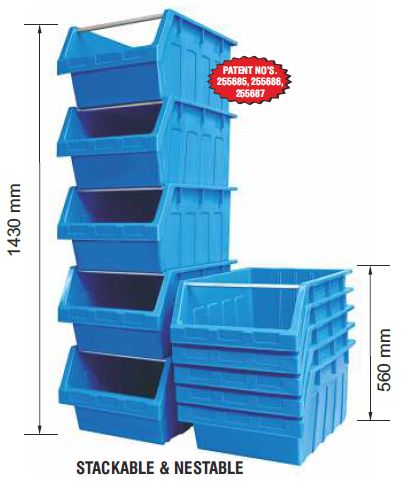

  • Bin can be stacked so you can effectively use maximum storage as compared to a single crate on a shelf and you don't need to keep any free over head space.
  • If stacked on the shelf one can effectively use maximum storage if compared with crates.
  • Clear frontal access to the contents of the bin in stacked condition.
  • Bin has large label holders for effective sku identification.
  • Dividers are available for the bin which can divide the bin in 2 or 3 equal parts.
  • Bin has strong heavy duty reinforced base for added strength and load bearing.
  • Rounded ergonomic design having strong sides and stacking rim gives extra strength and sturdiness for storage.
  • Resistant to most industrial solvents, whitstands high temperatures.
  • Aluminum pipe fitted with lock pins on either side to prevent the mouth of the bin from spreading under load conditions.

 Colours Available :



RED

BLUE



Other colours are available for MOQ of 500 pcs.

LABEL HOLDER PROVISION

PARTITIONS FOR SB-8

REINFORCED BASE

ALUMINUM PIPE LOCK CLIP
