KOALA SHELVING SYSTEMS



ALKON

 KOALA SHELVING SYSTEMS WITH 400 MM DEPTH



KOALA Shelving system come in four different heights
1275 mm H x 900 mm W x 400 mm D
1875 mm H x 900 mm W x 400 mm D
2175 mm H x 900 mm W x 400 mm D
2375 mm H x 900 mm W x 400 mm D





SHELVING DIMENSIONS 1275 MM (H) X 900MM (W) X 400MM (D)

ASU-104

ASU-105

ASU-104* Shelving Unit Consists of

ASU-105* Shelving Unit Consists of

Shelving Body ASUB 124 1 Set Shelving Body ASUB 124 1 Set
Shelves ASUS 400 6 Nos Shelves ASUS 400 6 Nos
Kick Plate ASUKP -* Kick Plate ASUKP -*
Bins per shelf AKP-42 6 Nos Bins per shelf AKP-43 4 Nos

Total 30 Nos AKP-42 Bins

* (No Kick Plate in Standard Unit.If Kick Plate Required then their will be 5 Nos. ASUS-400 shelves and 24 Nos. AKP42 Bins)

Total 20 Nos AKP-43 Bins

* (No Kick Plate in Standard Unit.If Kick Plate Required then their will be 5 Nos. ASUS-400 shelves and 16 Nos. AKP43 Bins)

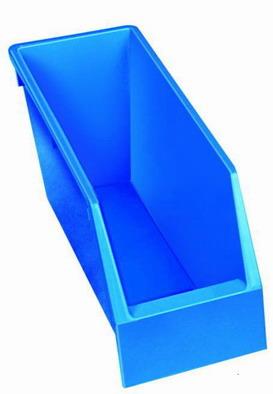

AKP-42 BIN SIZE

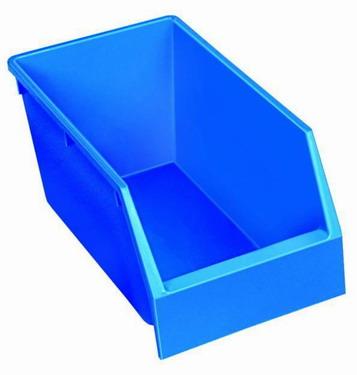

AKP-43 BIN SIZE

Length Width Height Length Width Height
400 mm  145mm 200 mm  400 mm  215mm 200 mm





SHELVING DIMENSIONS 1875 MM (H) X 900MM (W) X 400MM (D)

ASU-109 ASU-110

ASU-109 Shelving Unit Consists of ASU-110 Shelving Unit Consists of
Shelving Body ASUB 184 1 Set Shelving Body ASUB 184 1 Set
Shelves ASUS 400 8 Nos Shelves ASUS 400 8 Nos
Kick Plate ASUKP 1 No Kick Plate ASUKP 1 No
Bins per shelf AKP-42 6 Nos Bins per shelf AKP-43 4 Nos
Total 48 Nos AKP-42 Bins Total 32 Nos AKP-43 Bins

AKP-42 BIN SIZE

AKP-43 BIN SIZE

Length Width Height Length Width Height
400 mm  145mm 200 mm  400 mm  215mm 200 mm

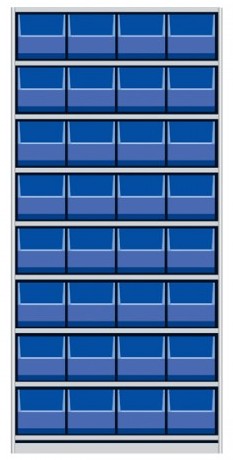

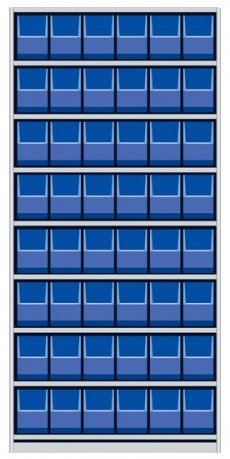

SHELVING DIMENSIONS 2175 MM (H) X 900MM (W) X 400MM (D)

ASU-114 ASU-1115

ASU-114 Shelving Unit Consists of ASU-115 Shelving Unit Consists of
Shelving Body ASUB 214 1 Set Shelving Body ASUB 214 1 Set
Shelves ASUS 400 8 Nos Shelves ASUS 400 8 Nos
Kick Plate ASUKP 1 No Kick Plate ASUKP 1 No
Bins per shelf AKP-42 6 Nos Bins per shelf AKP-43 4 Nos
Total 42 Nos AKP-42 Bins Total 28 Nos AKP-43 Bins

AKP-42 BIN SIZE

AKP-43 BIN SIZE

Length Width Height Length Width Height
400 mm  145mm 200 mm  400 mm  215mm 200 mm

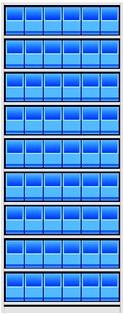

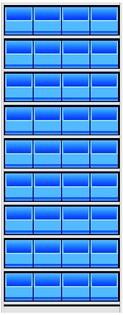

SHELVING DIMENSIONS 2375 MM (H) X 900MM (W) X 400MM (D)

ASU-119 ASU-120
ASU-119 Shelving Unit Consists of ASU-120 Shelving Unit Consists of
Shelving Body ASUB-234 1 Set Shelving Body ASUB-234 1 Set
Shelves ASUS 400 10 Nos Shelves ASUS 400 10 Nos
Kick Plate ASUKP 1 No Kick Plate ASUKP 1 No
Bins per shelf AKP-42 6 Nos Bins per shelf AKP-43 4 Nos
Total 54 Nos AKP-42 Bins Total 36 Nos AKP-43 Bins

AKP-42 BIN SIZE

AKP-43 BIN SIZE


Length Width Height Length Width Height
400 mm  145mm 200 mm  400 mm  215mm 200 mm

To See Details for 300mm Depth Koala Shelving System Click Here

To download Koala Bins Catalog Click Here
