KOALA SHELVING SYSTEMS



ALKON

 KOALA SHELVING SYSTEMS WITH 300 MM DEPTH



KOALA Shelving system come in four different heights
1275 mm H x 900 mm W x 300 mm D
1875 mm H x 900 mm W x 300 mm D
2175 mm H x 900 mm W x 300 mm D
2375 mm H x 900 mm W x 300 mm D





SHELVING DIMENSIONS 1275 MM (H) X 900MM (W) X 300MM (D)

ASU-101

ASU-102

ASU-103

ASU-101* Shelving Unit Consists of

ASU-102* Shelving Unit Consists of

ASU-103* Shelving Unit Consists of

Shelving Body ASUB 123 1 Set Shelving Body ASUB 123 1 Set Shelving Body ASUB 123 1 Set
Shelves ASUS 300 8 Nos Shelves ASUS 300 8 Nos Shelves ASUS 300 8 Nos
Kick Plate ASUKP -* Kick Plate ASUKP -* Kick Plate ASUKP -*
Bins per shelf AKP-32 6 Nos Bins per shelf AKP-33 4 Nos Bins per shelf AKP-35 2 Nos

Total 42 Nos AKP-32 Bins

* (No Kick Plate in Standard Unit.If Kick Plate Required then their will be 7 Nos. ASUS-300 shelves and 36 Nos. AKP32 Bins)

Total 28 Nos AKP-33 Bins

* (No Kick Plate in Standard Unit.If Kick Plate Required then their will be 7 Nos. ASUS-300 shelves and 24 Nos. AKP33 Bins)

Total 14 Nos AKP-35 Bins

* (No Kick Plate in Standard Unit.If Kick Plate Required then their will be 7 Nos. ASUS-300 shelves and 12 Nos. AKP35 Bins)

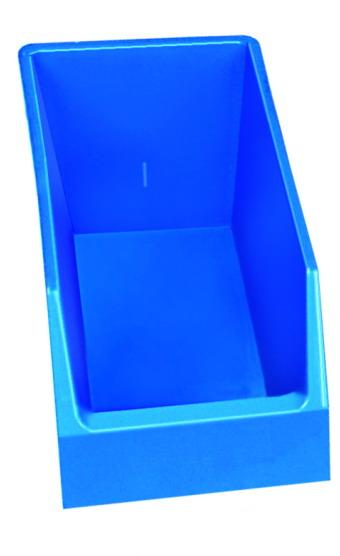

AKP-32 BIN SIZE

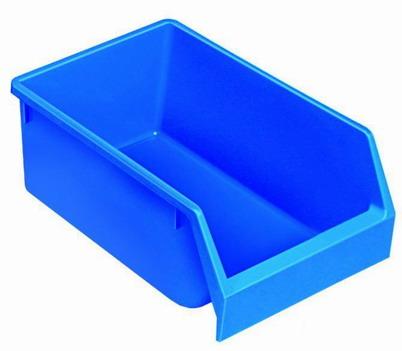

AKP-33 BIN SIZE

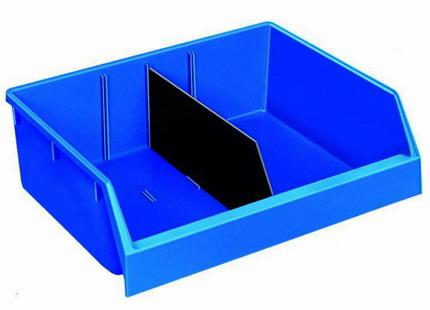

AKP-35 BIN SIZE

Length Width Height Length Width Height Length Width Height
300 mm  140mm 140 mm  300 mm  215mm 140 mm  300 mm  435mm 140 mm





SHELVING DIMENSIONS 1875 MM (H) X 900MM (W) X 300MM (D)

ASU-106 ASU-107 ASU-108

ASU-106 Shelving Unit Consists of ASU-107 Shelving Unit Consists of ASU-108 Shelving Unit Consists of
Shelving Body ASUB-183 1 Set Shelving Body ASUB-183 1 Set Shelving Body ASUB-183 1 Set
Shelves ASUS 300 11 Nos Shelves ASUS 300 11 Nos Shelves ASUS 300 11 Nos
Kick Plate ASUKP 1 No Kick Plate ASUKP 1 No Kick Plate ASUKP 1 No
Bins per shelf AKP-32 6 Nos Bins per shelf AKP-33 4 Nos Bins per shelf AKP-35 2 Nos
Total 60 Nos AKP-32 Bins Total 40 Nos AKP-33 Bins Total 20 Nos AKP-35 Bins

AKP-32 BIN SIZE

AKP-33 BIN SIZE

AKP-35 BIN SIZE

Length Width Height Length Width Height Length Width Height
300 mm  140mm 140 mm  300 mm  215mm 140 mm  300 mm  435mm 140 mm





SHELVING DIMENSIONS 2175 MM (H) X 900MM (W) X 300MM (D)

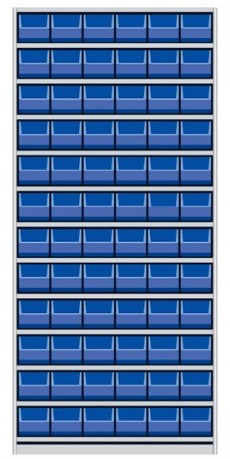

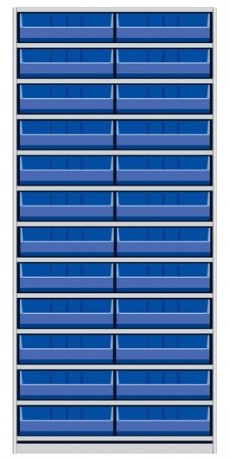

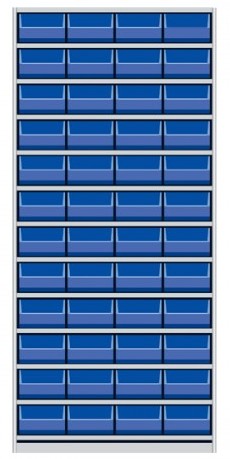

ASU-111 ASU-112 ASU-113
ASU-111 Shelving Unit Consists of ASU-112 Shelving Unit Consists of ASU-113 Shelving Unit Consists of
Shelving Body ASUB-213 1 Set Shelving Body ASUB-213 1 Set Shelving Body ASUB-213 1 Set
Shelves ASUS 300 13 Nos Shelves ASUS 300 13 Nos Shelves ASUS 300 13 Nos
Kick Plate ASUKP 1 No Kick Plate ASUKP 1 No Kick Plate ASUKP 1 No
Bins per shelf AKP-32 6 Nos Bins per shelf AKP-33 4 Nos Bins per shelf AKP-35 2 Nos
Total 72 Nos AKP-32 Bins Total 48 Nos AKP-33 Bins Total 24 Nos AKP-35 Bins

AKP-32 BIN SIZE

AKP-33 BIN SIZE

AKP-35 BIN SIZE


Length Width Height Length Width Height Length Width Height
300 mm  140mm 140 mm  300 mm  215mm 140 mm  300 mm  435mm 140 mm

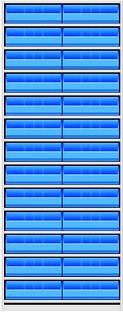

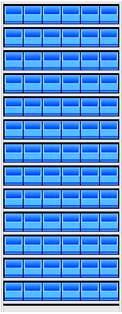

SHELVING DIMENSIONS 2375 MM (H) X 900MM (W) X 300MM (D)

ASU-116 ASU-117 ASU-118
ASU-116 Shelving Unit Consists of ASU-117 Shelving Unit Consists of ASU-118 Shelving Unit Consists of
Shelving Body ASUB-233 1 Set Shelving Body ASUB-233 1 Set Shelving Body ASUB-233 1 Set
Shelves ASUS 300 14 Nos Shelves ASUS 300 14 Nos Shelves ASUS 300 14 Nos
Kick Plate ASUKP 1 No Kick Plate ASUKP 1 No Kick Plate ASUKP 1 No
Bins per shelf AKP-32 6 Nos Bins per shelf AKP-33 4 Nos Bins per shelf AKP-35 2 Nos
Total 78 Nos AKP-32 Bins Total 52 Nos AKP-33 Bins Total 26 Nos AKP-35 Bins

AKP-32 BIN SIZE

AKP-33 BIN SIZE

AKP-35 BIN SIZE


Length Width Height Length Width Height Length Width Height
300 mm  140mm 140 mm  300 mm  215mm 140 mm  300 mm  435mm 140 mm

To See Details for 400mm Depth Koala Shelving System Click Here
