ESD SAFE MODULAR SYSTEM





 Modular system is an ideal storage system for Electrostatic sensitive
devices based on standard modules which can be interlocked and stacked one on top of each other.

The basic system is around four drawer sizes which can be interchanged in the ratio of : 1 : 2: 3: 4.

All cabinets can be supplied with / without central lock.

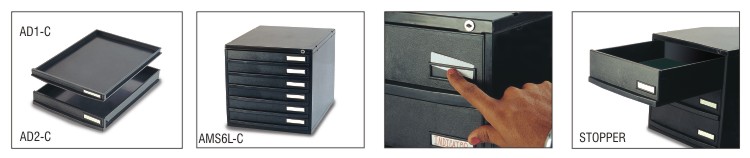

SPECIAL STOPPERS

Special stoper is provided to stop the drawers when opened fully. To remove drawer from the cabinet lift the drawer up & remove from cabinet.







INTERNAL SIZE OF
DRAWERS

AD1-C 360mmx265mmx16mm
AD2-C 360mmx265mmx39mm
AD3-C 360mmx265mmx62mm
AD4-C 360mmx265mmx87mm

AMS12-C Modular system with 12 AD1-C Drawers
AMS6-C Modular system with 6
AD2-C Drawers
AMS4-C Modular System with 4
AD3-C Drawers
AMS3-C Modular System with 3
AD4-C Drawers



MIXED DRAWER SYSTEM

Modular System can be fitted with different size of drawers in the same cabinet. For example, One AD4-C drawers can be replaced by two AD2-C drawer or one AD1-C drawer and one AD3-C drawer

INDICATOR

Name plate can be changed by pushing out the paper from the indicator as shown.



BASE UNIT

Base unit can be used with casters to make a mobile unit. One or more base unite can be used (Joined by set of four dowels provided ) under the Modular system to raise the cabinet from the floor. Height of base unit is 35mm.

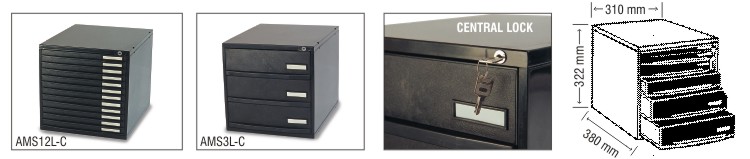

CENTRAL LOCKING SYSTEM

Is provided OPTIONALLY. Product numbers for cabinet with locks will be AMS12L-C , AMS6L-C, AMS4L-C etc.

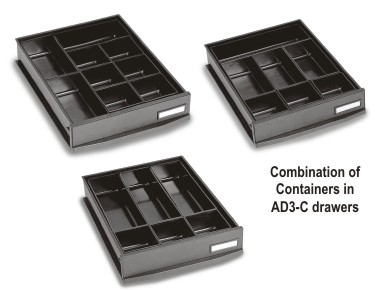

CONDUCTIVE UTILITY CONTAINERS FOR STORAGE OF SMALL PARTS



THREE SIZES OF CONTAINER IN BLACK COLOUR ARE AVAILABLE TO FIT IN AD3-C DRAWERS
AND ONE SIZE TO FIT IN AD2-C DRAWER

SIZES OF CONTAINERS :

Art No. UC1-C Size 82 x 82 x 55 mm
12 CONTAINERS FIT IN ONE AD3-C DRAWER

Art No. UC2-C Size 170 x 82 x 55 mm
6 CONTAINERS FIT IN ONE AD3-C DRAWER

Art No. UC3-C Size 255 x 82 x 55 mm
4 CONTAINERS FIT IN ONE AD3-C DRAWER

Art No. UCD 2-C Size 258 x 85 x 37 mm with 2 partition
6 CONTAINERS FIT IN ONE AD2-C DRAWER

Art No. UC6-C Size 95 x 90 x 45 mm
This container is designed to be used in USE ALL BOX
