ESD SAFE PCB CARRIER

ALKON introduces a wide range of fixed and adjustable PCB Carriers to stack and store or transport your PCB's. They are the most modern designed carriers available. They are manufactured in both Conductive and Non-conductive plastic and can handle all sizes of PCB's.

ALKON adjustable PCB Carriers can be used for protection of boards during storage or transport in assembly line or integrate with automatic component insertion machines.

They can be stacked one on each other. Each PCB Carrier has distinctly numbered on white background, 31 slots which can hold a maximum of 31 PCB's. Special Aluminium Guides have a unique design which remains Flush with PCB Carriers. They help in adjusting the width as per the Size of PCB,s

Three lengths of aluminium guides are available i.e. 253 mm, 353mm and 553mm

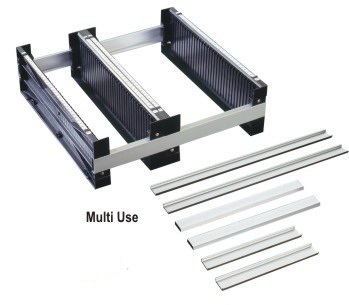

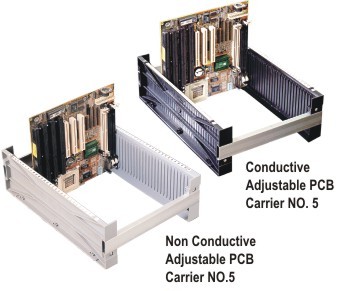

ADJUSTABLE PCB CARRIER NO 5 MULTI USE

Different sizes of PCB's can be fitted in two PCB Carriers as
shown in the picture

ALUMINIUM GUIDES
Three Standard lengths Aluminium anodized guides are available
Longer lengths useful for handling different sizes of PCB's are
available on request.

LENGTH
253 mm Set of 2 pcs. Art No.: APCRG -2
353 mm Set of 2 pcs. Art No.: APCRG -3
553 mm Set of 2 pcs. Art No.: APCRG -5

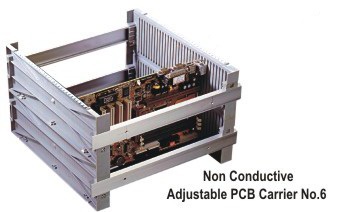

ADJUSTABLE PCB CARRIER NO 6

Useful for medium sized Boards
Size of sides 350 mm x 210 mm
2 Sets of Aluminum guides are required for Carrier No. 6

Conductive Adjustable PCB Carrier No.: 6
Set of 2 pcs. - Colour Black .
Art No.: APCR6 - C

Non Conductive Adjustable PCB Carrier No.: 6
Set of 2 pcs. - Colour Grey .
Art No.: APCR6 - N
Order Aluminum guides separately.

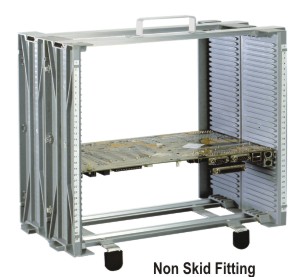

NON SKID FITTING AND CARRY HANDLE

NON SKID FITTING

Non Skid fitting available to fit at the bottom on Aluminum guides
to keep the PCB carriers at a taper for horizontal storage of PCB's.

Set of- 2 pcs. Art No.: NSF

CARRY HANDLE

Carry handle can be provided to carry the PCB's in horizontal
position in the racks.

Handle 1 pc. Art No.: PCB-H

CONDUCTIVE AND NON CONDUCTIVE FIXED PCB CARRIERS

Economical carriers for handling clinched SMD's, Soldered or bare boards of any Size.
Tapered slots to keep PCB's in taper position.
Easy to carry.

Size 458 mm x 140 mm
25 Slots

Black Colour for conductive. Art No.: APCR1-C
Grey Colour for non conductive. Art No.: APCR1-N

Packing : Fixed PCB Carrier are packed 5 pcs. in a box

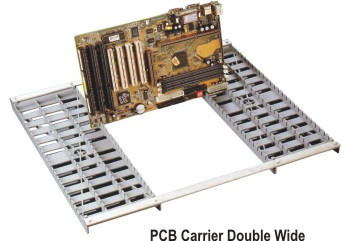

PCB CARRIER DOUBLE WIDE

Two PCB Carriers can be connected with Aluminium connectors for very wide PCB's upto 600mm.

Conductive :
Art No.: APCR 1-WC

Non Conductive :
Art No.: APCR 1-WN

FIXED PCB CARRIERS "L" TYPE

It is a two side support PCB carrier of conductive or non conductive material for stronger card holding.

Conductive PCB carrier are excellent PCB carrier for work benches.

Easy to handle and does not occupy much space.

Electrically conductive models are wholly earthed only by placing them on an earthed table.

  Holds boards on two contigious edges.

  Nestable when not in use.

  Conductive PCB carrier in Black colour.

  Non conductive PCB carriers in Grey colour.

  Size : 207 x 273 x 95 mm.

  25 grooves, 9mm Pitch, 3mm width.
