SUPRA BINS ON LOUVRE PANEL, STANDS AND SHOP FLOOR TROLLEY







LOUVRE PANEL STAND : FSS/C





Free standing stand FSS/C are made from M.S. Steel Square Pipes of size 25mm (L) x 25mm (W) x 1.2mm (T) and are duly powder coated in Light Grey RAL 7035 colour. Stands are fitted with ergonomic plastic shoes for proper stability. These stands are used to mount louvre panels LP 1, LP 2 or LP 3 Louvres can be mounted on single side or both sides for dual use.

Art No : FSS/C
Dimension : 457mm (W) X 630mm (D) X 1560mm (H)

Colour : Light Grey RAL 7035.



FSS/C

FSS/C

FSS/C

Fitted with Louvre Panel LP2 - 4 Nos.

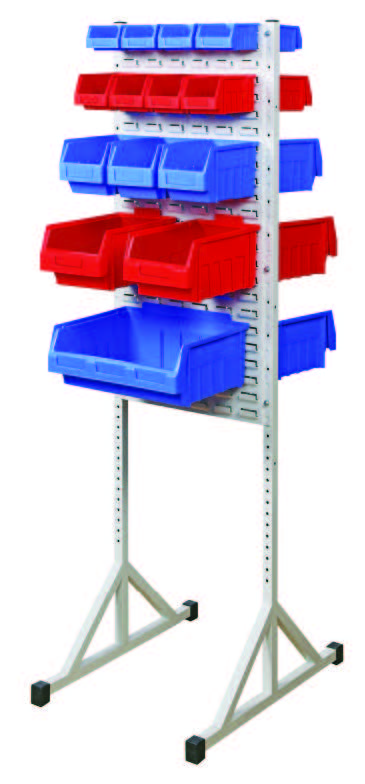

Fitted with Louvre Panel LP 3- 2 Nos

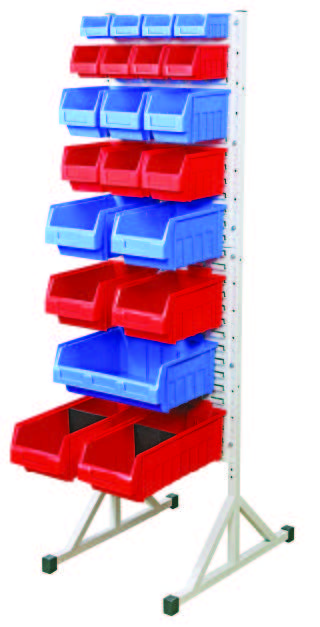

Fitted with Louvre Panel LP2 - 2 Nos.

(2 Nos on each side)

(1 No on each side).

(2 Nos on one side)





LOUVRE PANEL STAND : FSS/ LP6



Art No : FSS/LP 6
Dimension : 457mm (W) X 905mm (D) X 2160mm (H)

Free standing stand FSS/LP 6 are made from M.S. Steel Square Pipes of size 25mm (L) x 25mm (W) x 1.2mm (T) and are duly powder coated in Light Grey RAL 7035 colour.

Stands are fitted with ergonomic plastic shoes for proper stability. These stands are used to mount louvre panel LP 6. Louvres can be mounted on single side or both sides for dual use.

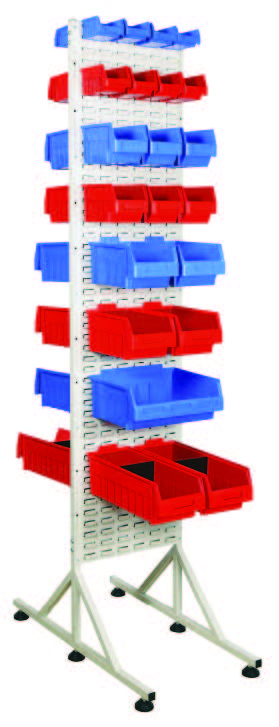

FSS/LP6

Fitted with Louvre Panel LP6 - 2 Nos. (1 No. on each side)

  Top




SHOP FLOOR TROLLEY : SFT

Art No : SFT
Trolley without Louvre Panels and Bins.
(Order 2 Nos of LP 2 for single side use and 4 Nos of LP 2 for double side use separately).



Alkon Shop Floor Trolleys are made from MS Steel Rectangular Pipes of size 20mm (L) x 40mm (W) x 1.2mm (T) and duly Powder coated in Light Grey RAL 7035 colour.

Trolleys can be used single sided or double sided as per requirement. Ideal for component storage and transfer to assembly or production areas. Unit comprises of base unit with aluminium checkered top plate fitted with castors and a frame on which two Louvre Panels of size LP 2 can be fitted on each side. Trolley has handles on both sides. It is packed in knock down condition.

Dimension : 970mm (W) x 600mm (D) x 1100mm (H)

Colour : Light Grey RAL 7035.

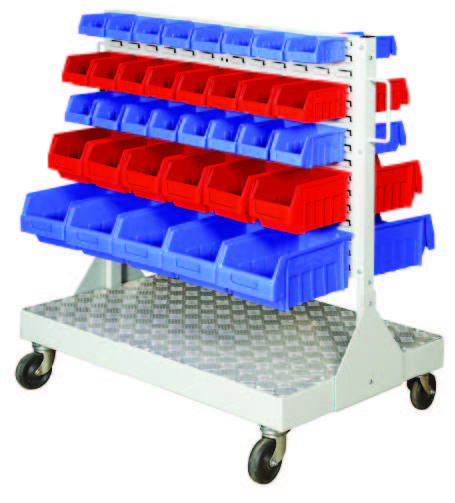

Shop Floor Trolley with  Supra Bins (Double Side).

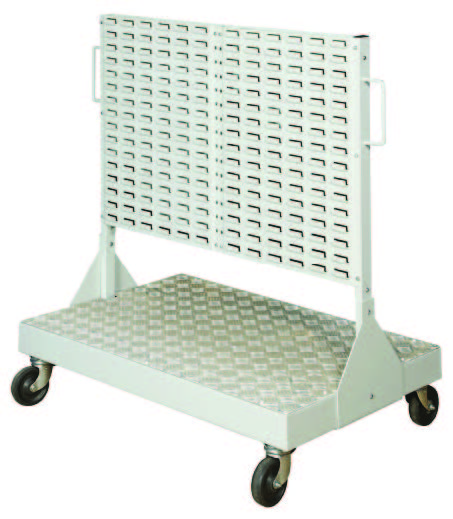

Shop Floor Trolley without  Bins.



As per the image shown above double sided trolley can hold 16 Nos of SB 1 Bins, 32 Nos of SB 2 Bins, 12 Nos of SB 3 Bins, 10 Nos of SB 4 Bins & extra bins on the bottom table top or different sizes of bins as per your requirement.






FOR SUPRA BINS ON TUFF LOUVRE PANEL STANDS CLICK HERE

            Top




SUPRA BINS ON LOUVRE PANEL STANDS

Stand FSS/L/3 Will be available till stock is available

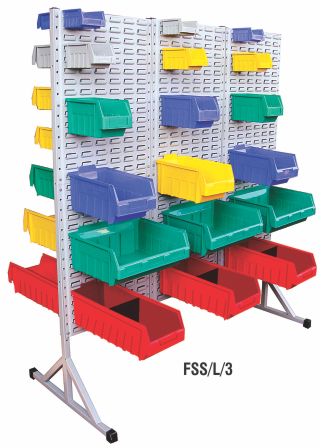

LOUVRE PANEL STAND : FSS/L/3

Free standing stand FSS/L/3 can be fitted with six numbers of LP2 Louvre Panels on each side.

Order Louvre Panels and Bins separately.

Art No.: FSS/L/3

DIMENSION : 1371 X 630 X 1560 mm



            Top

BIN MODELS

SUPRA Bins RHINO Bins HIPPO Bins  BULL Bins TOTE Bins PANDA Bins KOALA Bins POLY Bins
